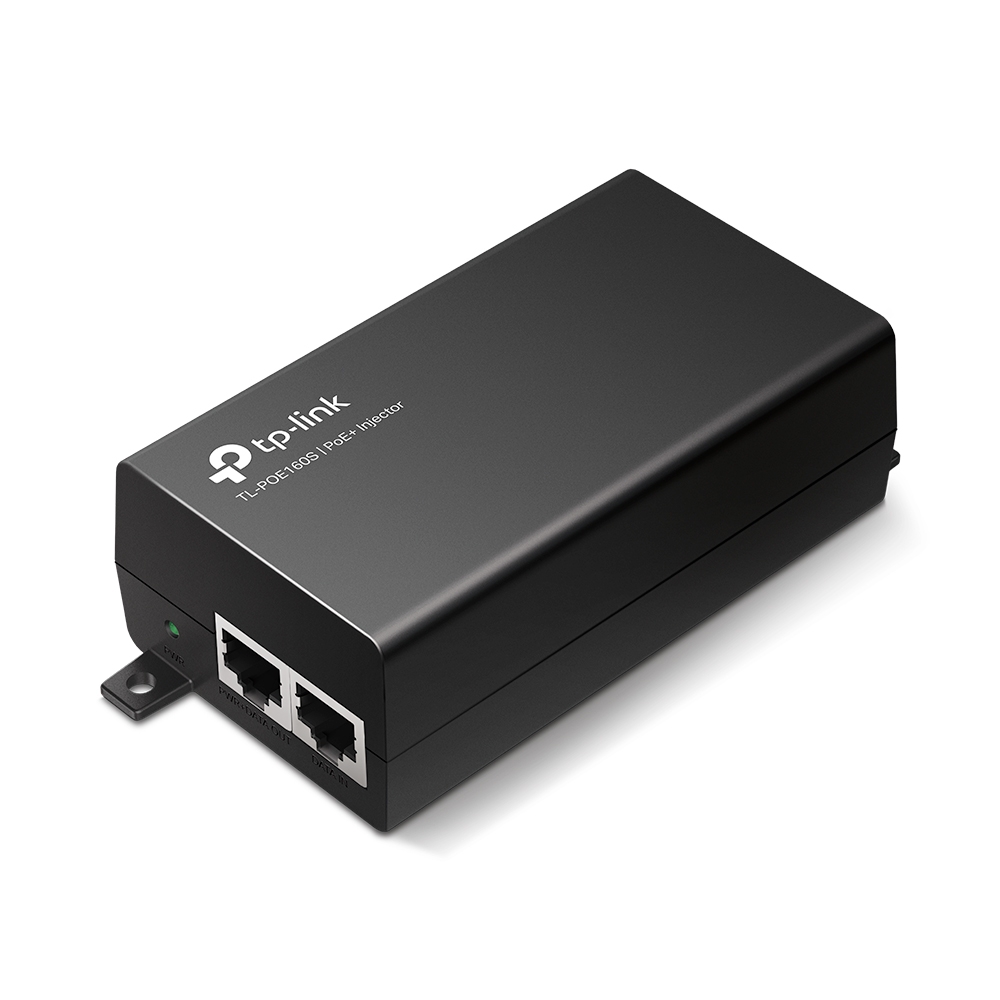

TP-Link POE160S POE + Injector 2 Gigabit Ports

TP-Link TL-POE160S PoE+ Injector (Black) Key Features
Delivers 30W Power over Ethernet
2 x Gigabit Ports
Plug-and-Play Operation
IEEE 802.3af/at Standards
1000 Mb/s Passthrough Data Rates
100 to 240 VAC Input
Wall Mountable
Integrated Power Supply TP-Link TL-POE160S Overview
Power devices such as IP cameras, VoIP phones, and access points with the black TL-POE160S PoE+ Injector from TP-Link. This unit will support devices that require up to 30W of PoE. ...It complies with IEEE 802.3af/at standards and supports 1000 Mb/s passthrough data rates. The TL-POE160S can be wall-mounted or placed on a desktop for flexible installation options. Compact solution for powering IP devices that require up to 30W of PoE power
LED indicators for status
Plug-and-play operation
Automatically determines and supplies the exact power to meet a connected device’s needs
Compatible with Cat 3 cables or higher
328′ operating range
FCC, CE, and RoHS certified What This Product Does
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. Specifications
Network
Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at General:
Certification: FCC, CE, RoHS
Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing Hardware Features
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100? STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100? STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) Ports:
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC power port Power Consumption:
Input: 100-240 V, 50/60 Hz
Output: Auto-determine the necessary power requirements (max. 30 W) Basic Function:
Auto-Sensing Algorithm enables providing power with 802.3af/at PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play LED Indicator::
ON: Supplying power normally
OFF: No power supply What’s in the box
1 x TP-Link TL-POE160S PoE+ Injector (Black)
1 x Limited 2-Year Warranty
