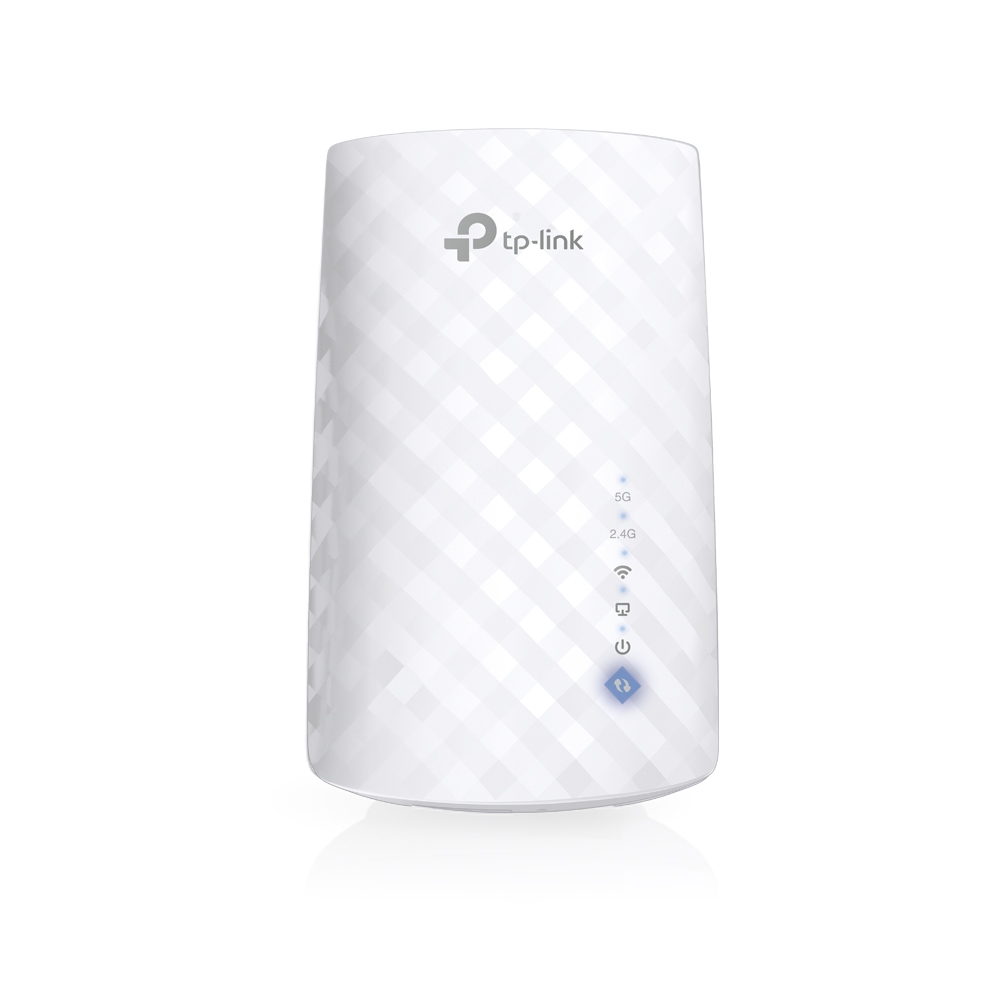

TP-LINK RE190 AC750 Dual Band WI-FI Range Extender, Miniature, Wall Mounted

AC750 Wi-Fi Range Extender
RE190 Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
Dual band speeds up to 750Mbps
Miniature size and wall-mounted design make it easy to deploy and move flexibly Easy Wi-Fi Extension Flexible Placement
AC750 Wi-Fi Range Extender
RE190 Boost Your Wi-Fi Network to Cover hard-to-reach Areas
Place the RE190 between your wireless router and wireless devices, expanding Wi-Fi ...coverage while eliminating Wi-Fi dead zones. Enjoy a seamless wireless network throughout your home or office. The dual bands Wi-Fi up to 750Mbps not only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high ISP speed — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks. AC750 Wi-Fi for Compatible Connections
The RE190’s Wireless AC technology create stronger Wi-Fi connections across your home. Work with any standard router or access point, making it convenient to provide wide, non-dropping Dual Band Wi-Fi to multiple devices. One Key Connection
Press the WPS button on your router and RE button on your RE190 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply relocate the RE190 at any location for the best signal strength. Smart Signal Indicator
Smart signal lights indicate the signal strength received from the existing router. Read the lights to find the best location for your RE190. Dedicated to Networking for over 20 years
Dedicated provider of networking products for over 20 years, with industry-leading professionalism and time-proven reliability. Specifications
Hardware Features
Button : WPS Button, RESET Button
Power Consumption : 7.0W
Dimensions : 4.3×2.59×1.53 in. (110.0×65.8×38.8mm)
Antenna : 3 Omni-directional Antennas Wireless Features
Wireless Standards : IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency : 2.4GHz and 5GHz
Signal Rate : 300Mbps at 2.4GHz, 433Mbps at 5GHz Reception Sensitivity
5GHz:
11a 6Mbps: -94dBm, 11a 54Mbps: -78dBm
11ac HT20 MCS0: -94dBm, MCS8: -73dBm
11ac HT40 MCS0: -91dBm, MCS9: -65dBm
11ac HT80 MCS0: -88dBm, MCS9: -62dBm
2.4GHz:
11g 54Mbps: -78dBm, 11n HT20: -75dBm
11n HT40: -73dBm Transmit Power : CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.35GHz); <30dBm(5.47GHz~5.725GHz)
Wireless Functions : WMM, Short GI, High Speed, WPS
Wireless Security : WEP, WPA/WPA2-PSK encryptions Others
Certification : CE, RoHS
System Requirements : Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Environment : Operating Temperature: 0°C ~ +40°C
Storage Temperature: -40°C ~ +70°C
Operating Humidity: 10% ~ 90%RH
Storage Humidity: 5% ~ 90%RH What’s in the box
Range Extender RE190
Quick Installation Guide
