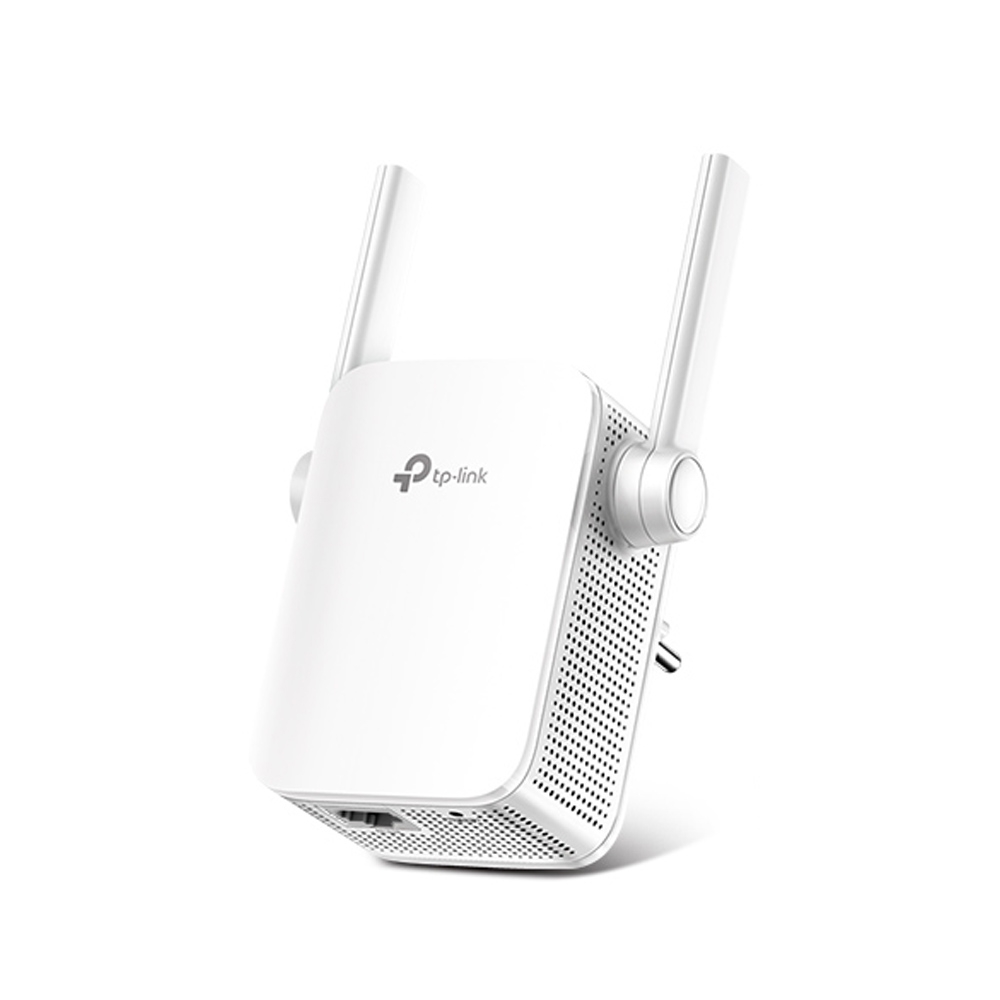

TP-Link RE205 AC750 Wi-Fi Range Extender – White

TP-Link AC750 Wi-Fi Range Extender – White Features:
– Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 750Mbps
– Operates over both the 2.4GHz band(300Mbps) and 5GHz band(433Mbps) for more stable wireless experience
– Intelligent signal light helps to fi­nd the best location for optimal Wi-Fi coverage by showing the signal strength
– Works with any Wi-Fi router or wireless access point Easily Expand Your Wi-Fi Coverage:
Tired of ...Wi-Fi dead zones in your home? The RE205 Range Extender connects to your Wi-Fi router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own, while reducing signal interference to ensure reliable Wi-Fi coverage throughout your home or office. High-Speed Dual Band Wi-Fi for Better Connections:
The RE205 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 433Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming. Perfect Location at a Glimpse:
– An Intelligent Signal light helps you quickly find the best location to install the RE205
– Blue = Good connection
– Red = Too far away from the router Built-in Access Point Mode:
RE205 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point. Easy Management and Remote Control:
The RE205 works with all Wi-Fi routers. You can use TP-Link’s free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips. Signal Rate:
– 5GHz:Up to 433Mbps
– 2.4GHz:Up to 300Mpbs Reception Sensitivity:
– 5GHz:
– 11a 6Mbps: -94dBm@10% PER
– 11a 54Mbps: -77dBm@10% PER
– 11ac HT20: -69dBm@10% PER
– 11ac HT40: -66dBm@10% PER
– 11ac HT80: -63dBm@10% PER
– 2.4GHz
– 11g 54Mbps: -79dBm@10% PER
– 11n HT20: -77dBm@10% PER
– 11n HT40: -74dBm@10% PER Wireless Modes:
– Range Extender/Access Point
– Wireless Statistic
– Concurrent Mode boost both 2.4G/5G Wi-Fi band Wireless Functions:
– Wireless Statistic
– Concurrent Mode boost both 2.4G/5G Wi-Fi band Access Control:
– LED Control
– Domain Login Function Wireless Security:
– 64/128-bit WEP
– WPA-PSK / WPA2-PSK Transmission Power:
– <19.5dBm(2.4GHz)
– <19.5dBm(5GHz) System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux. Environment:
– Operating Temperature: 0°C~40°C (32°F~104°F)
– Storage Temperature: -40°C~70°C (-40°F~158°F)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing Specifications
HARDWARE FEATURES
Plug Type: EU, UK, US
Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Interface: 1 x 10/100M Ethernet Port (RJ45)
Button: WPS Button, Reset Button
Power Consumption: 7.3W?max power consumption?
Dimensions: ( W x D x H ) 3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)
Antenna: 2 x external
WIRELESS FEATURES
Frequency: 2.4GHz & 5GHz(11ac)
Others: Certification: CE, FCC, RoHS
Box Dimensions: (W X D X H): 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm) What’s in the box
AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide
