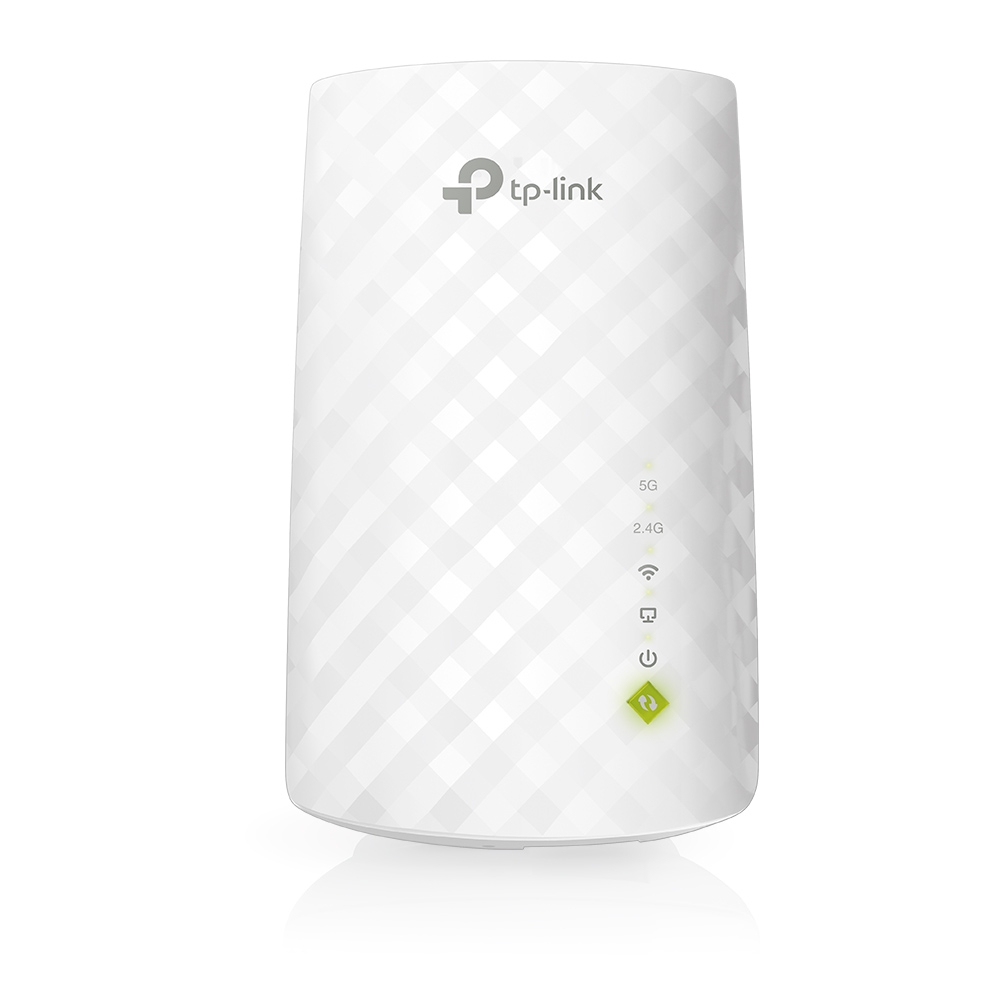

TP-LINK RE220 – AC750 Dual Band WI-FI Range Extender, 10/100MBPS Ports

AC750 Wi-Fi Range Extender Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
Dual-band speeds up to 750Mbps
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Ethernet port allows the Extender to function as a wireless adapter to connect wired devices Eliminate Wi-Fi Dead Spots Extend High-Speed Wi-Fi Across Your Home
AC750 Wi-Fi Range Extender Boost Your Wi-Fi to hard-to-reach ...Areas
Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. The dual-band Wi-Fi up to 750 Mbps can not only extend to 32,00 sq. ft. (300m2) with the router, but also make good use of your high ISP speed, ideal for HD video streaming, online gaming, and other bandwidth-intensive tasks. Stable Dual Band Connection for More Devices
The RE220’s Wireless AC technology creates faster and stronger Wi-Fi connections across your home and extends dual-band Wi-Fi up to 750 Mbps. Dual 2.4 GHz and 5 GHz bands provide Wi-Fi connections to up to 32 devices, allowing you to enjoy a stable and drop-free experience on all your devices. Simple Two-Step Setup
Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the extender via the Tether app or Web UI if your router doesn’t support WPS.
Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light. An Access Point as well as a Wireless Adapter
The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. And it can also function as a wireless adapter to connect wired devices. High-Speed Mode for Maximized Performance
High-Speed Mode uses one dedicated Wi-Fi band as backhaul and another dedicated Wi-Fi band as an access point to maximize the bandwidth on extender Wi-Fi. Universal Compatibility
The RE220 is compatible with any of your existing Wi-Fi router or access point, making it easy to expand and strengthen your Wi-Fi network. Smart Management by Tether App
Set up and manage your Wi-Fi through the TP-Link Tether app on your smartphone (Android, iOS). Specifications Hardware Features Plug Type: EU, UK, US, AU
Standards and Protocols: IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface: 1 x 10/100M Ethernet Port (RJ45)
Button: RE (Range Extender) Button, Reset Button
Power Consumption: About 6.5W
Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna: 3 x internal Wireless Features Frequency: 2.4GHz & 5GHz Signal Rate:
5GHz: Up to 433Mbps
2.4GHz: Up to 300Mpbs Reception Sensitivity:
2.4G:
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G:
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M?-90dBm@10% PER Transmit Power: < 20 dBm (EIRP)
Wireless Modes: Range Extender Wireless Functions:
WMM (Wi-Fi Multimedia)
Wireless Statistic
Domain Login Function Wireless Security:
64/128/152-bit WEP
WPA-PSK / WPA2-PSK Others: Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare®, UNIX, or Linux. Environment:
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
1 x AC750 Wi-Fi Range Extender RE200
1 x Quick Installation Guide
