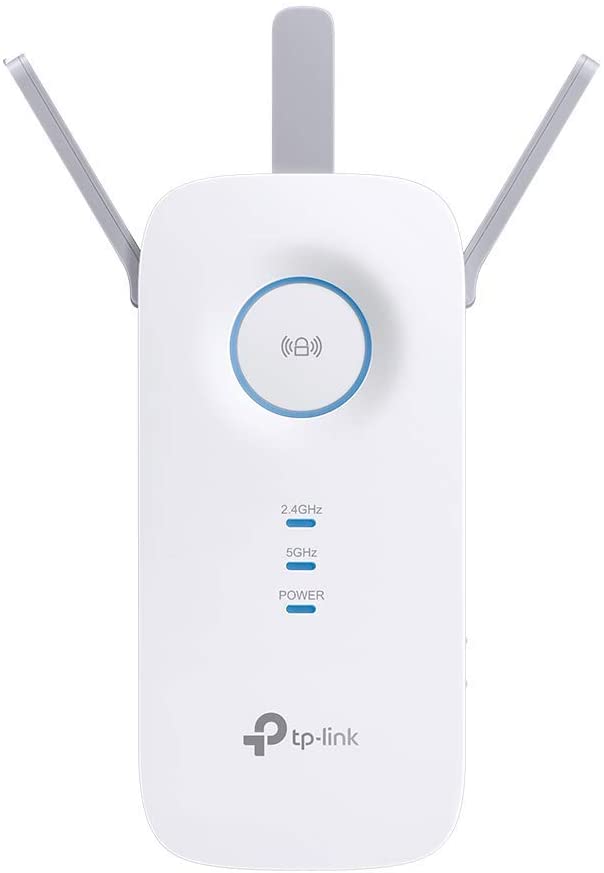

TP-Link RE550 AC1900 Dual Band Wi-Fi Range Extender

RE550
– Maximum Coverage: Extend Wi-Fi coverage by up to 1,115 square meter
– AC1900 Dual Band Wi-Fi: Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz
– Three Antennas: 3 adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
– Gigabit Ethernet port: Act as a wireless adapter to connect a wired device to your network at Gigabit speed
– Intelligent Signal Light: Help to find the best location for optimal Wi-Fi coverage by showing the signal strength
– AP Mode: Create ...a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
– TP-Link Tether App: Easily access and manage your network using any iOS or Android mobile device
– Ultimate Compatibility: Extend the range of any Wi-Fi router or wireless access point Features:
Wi-Fi expansion to your whole home:
– A single router has limited Wi-Fi coverage and always causes radio holes. The RE550 makes a wireless connection to your existing router and extends its Wi-Fi signal to areas that it cannot reach alone. Enjoy your stable network experience wherever you are at home.
Faster Dual-band Wi-Fi with up to 1900 Mbps:
– The RE550 delivers dual band (2.4GHz and 5GHz) to transfer Wi-Fi signals, doubled the performance of each band. With the dual bands with 600 Mbps (2.4 GHz) and 1300 Mbps (5 GHz), you can connect more devices at the same time. Use the 2.4GHz band to send emails and surf the internet, and the 5GHz band for games and HD streaming.
TP-Link OneMesh:
– With TP-Link mesh technology, it is easy to form a mesh network with a single Wi-Fi name for seamless coverage of the entire home. Simply connect RE550 to a OneMesh™ router. Always enjoy the strongest Wi-Fi when you run around without having to search for a stable connection.
Adaptive path selection:
– Adaptive path selection ensures that your network runs at optimal speed by automatically selecting the fastest connection path to the router. Keep your devices fast and stable – ideal for network environments with many devices and applications.
High speed mode:
– Uses a dedicated Wi-Fi band as a backhaul and another dedicated Wi-Fi band as an access point to maximise the bandwidth of extended Wi-Fi.
Built-in access point mode:
– RE550 is more than a wireless repeater. Simply plug an Ethernet cable into the Ethernet port and turn your wired Internet connection into a wireless 3×3 MIMO dual-band access point.
Gigabit Ethernet connection:
– The RE550’s Gigabit Ethernet port provides superfast cable access for desktops, smart TVs and games console.
Control at your fingertips:
– Set up your Wi-Fi via the TP-Link Tether app from your smartphone (Android, iOS) and manage it, including TP-Link routers and repeaters. NB: PLEASE DO CHECK WHETHER YOUR EXISTING ROUTER SUPPORTS OneMesh™!!! Specification:
Hardware Features
– Plug Type: EU
– Standards and Protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
– Interface : 1 x 10/100/1000M Ethernet Port (RJ45)
– Button: WPS Button, Reset Button, LED Button, Power Button
– Power Consumption: 10W (max power consumption)
– Antenna: 3 x external Wireless Features
– Frequency: 2.4GHz & 5GHz (11ac)
– Signal Rate:
1/ 5GHz: Up to 1300Mbps
2/ 2.4GHz: Up to 600Mpbs
– Reception Sensitivity:
5GHz:
a) 11a 6Mbps:-93dBm@10% PER
b) 11a 54Mbps: -76dBm@10% PER
c) 11ac HT20 mcs8: -68dBm@10% PER
d) 11ac HT40 mcs9: -64dBm@10% PER
e) 11ac HT80 mcs9: -61dBm@10% PER
2.4GHz:
a) 11g 54M: -77dBm@10% PER
b) 11n HT20 mcs7: -73dBm@10% PER
c 11n HT40 mcs7: -70dBm@10% PER
– Wireless Modes: Range Extender/Access Point
– Wireless Functions: Wireless Statistic
– Concurrent Mode Boost Both 2.4G/5G Wi-Fi Band
– Access Control
– LED Control
– Domain Login Function
– Wi-Fi Coverage
– Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
– Transmission Power: <20dBm (2.4GHz); <23dBm (5GHz) Others
– Certification: CE, FCC, RoHS
– System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux
– Environment:
1/ Operating Temperature: 0 degree Celsius ~ 30 degree Celsius
2/ Storage Temperature: -40 degree Celsius ~ 70 degree Celsius
3/ Operating Humidity: 10% ~ 90% non-condensing
4/ Storage Humidity: 5% ~ 90% non-condensing What’s in the box
1 x AC1900 Wi-Fi Range Extender RE550
1 x Quick Installation Guide
