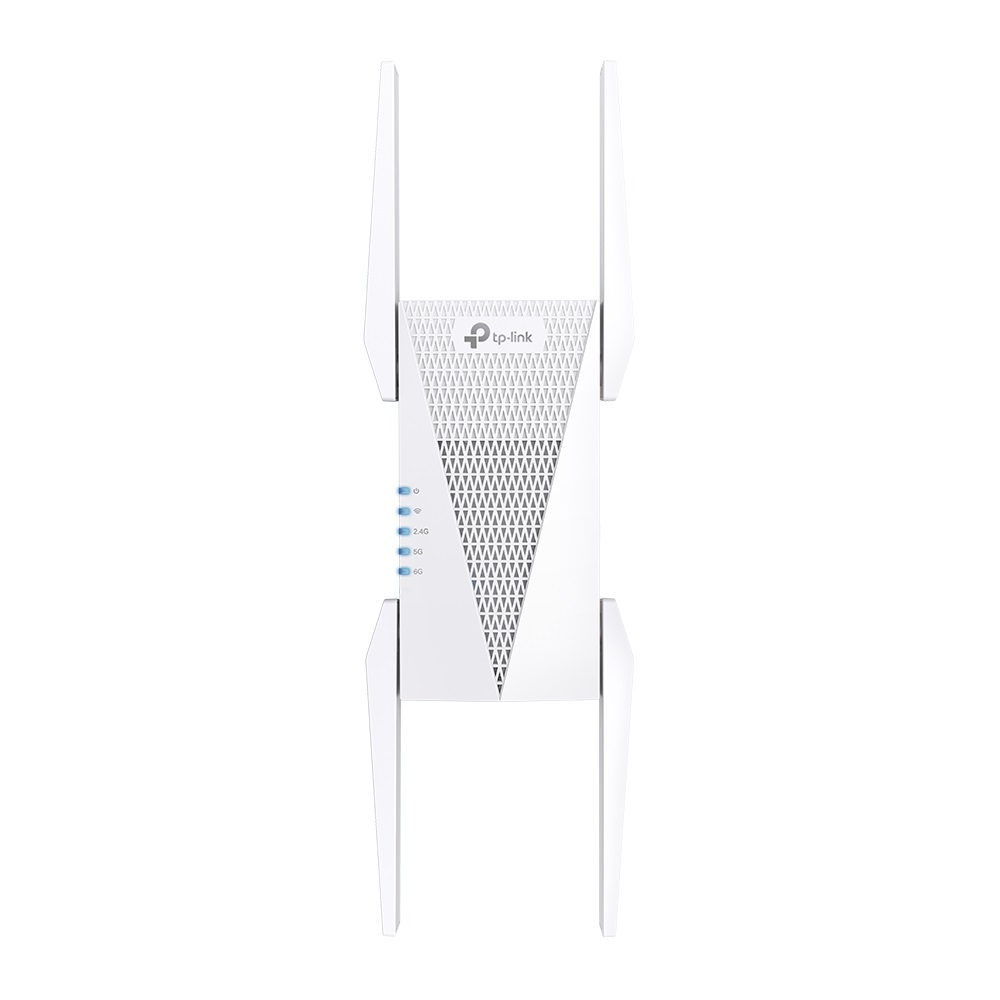

TP-Link RE815XE AXE5400 Mesh Wi-Fi 6E Range Extender

RE815XE
– AXE5400 Tri-Band Wi-Fi: Boosts overall speeds up to an incredible 5400Mbps.
– Dedicated 6GHz Band: Provides a clearer band to prevent Wi-Fi interference and congestion.
– 160MHz Channel Bandwidth: Expands bandwidth to double the network speed of traditional 80MHz.
– Seamless Roaming: Walk from room to room and stay connected with the fastest possible speeds.
– Improved Capacity, Less Lag: Experience flawless streams on more screens throughout your home.
– Simple Installation: Just plug in and then ...set up with the Tether App. Cutting-edge Technology
Broader, Faster, Stronger
AXE5400 Wi-Fi 6E Range Extender
RE815XE Features:
Incredible Performance (6):
– Wi-Fi 6E offers the new 6GHz frequency band with 1200MHz of available spectrum. This wide-open band creates lower latency, higher throughput, and faster speeds for RE815XE. Enjoy the ultimate streaming experience with the latest Wi-Fi generation.
6GHz for More Capacity:
– RE815XE takes full advantage of tri-band, empowering up to 96 devices with lightning-fast 5400Mbps speed (3). With the 6GHz band serving as its backhaul, all of your connected devices receive phenomenal connectivity.
Broader Coverage:
– RE815XE’s four external antennas create a stable wireless connection to any Wi-Fi router, boosting your network’s coverage. 6 high-power FEM provide maximum Wi-Fi performance, so your phones and tablets stay connected as you move throughout your home. Beamforming technology detects the location of devices and concentrates Wi-Fi towards them for stronger connections.
OneMesh: Shape a seamless roaming network with RE815XE.
– OneMesh enables RE815XE to network with any router that supports OneMesh technology to form a seamless roaming network system5 that shares a set of Wi-Fi names for uninterrupted signal switching.
1/ One Wi-Fi Name: No more switching Wi-Fi network names.
2/ Smart Roaming: Uninterrupted streaming when moving around your home.
3/ Whole Home Coverage: Eliminate weak signal areas in every corner of your home.
4/ Unified Management: Manage the entire network all from the TP-Link Tether app.
Built-In Access Point Mode:
– RE815XE is more than a wireless range extender. In places with a network line, simply plug an Ethernet cable into the extender’s Ethernet port to turn your wired internet connection into a tri-band wireless access point and the port rate reaches to 1000Mbps.
Control at Your Fingertips:
– Set up and manage your Wi-Fi through the TP-Link Tether app from your phone (Android, iOS). Network management has never been easier. Notes:
(1) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
(2)Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, 1024-QAM, and HE160 requires clients to also support the corresponding features. Not all seven 160 MHz channels may be available in the 6 GHz band in some regions/countries due to regulatory restrictions.
(3) The maximum capacity is the maximum number of signals that can be connected under ideal conditions, and the specific situation varies with the location of the RE, the type of connected equipment, etc.
(4) Further software upgrades for feature availability may be required.
(5) The product may not be compatible with routers or gateways with firmware that has been altered, based on open source programs, or is non-standard or out-dated. Specifications:
WIRELESS
– Working Modes: Range Extender/Access Point
HARDWARE FEATURES
– Port: 1 x Gigabit Ethernet Port
– Button: WPS Button, Reset Button
– Input Power: 100 – 240V, 50/60Hz
– Power Consumption: 23W
– Antenna: 4 External Antennas
WIRELESS FEATURES
– Wireless Standards: IEEE 802.11ax 6GHz, IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz
– Frequency: 2.4GHz and 5GHz and 6GHz
– Signal Rate: 574Mbps at 2.4GHz, 2402Mbps at 5GHz, 2402Mbps at 6GHz
– Reception Sensitivity:
1/ 6GHz:
a) 11ax HE20 MCS0: -92dBm, 11ax HE20 MCS11: -61dBm
b) 11ax HE40 MCS0: -89dBm, 11ax HE40 MCS11: -58dBm
c) 11ax HE80 MCS0: -86dBm, 11ax HE80 MCS11: -55dBm
d) 11ax HE160 MCS0: -83dBm, 11ax HE160 MCS11: -52dBm
2/ 5GHz:
a) 11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm
b) 11ax HE40 MCS0: -90dBm, 11ax HE40 MCS11: -59dBm
c) 11ax HE80 MCS0: -87dBm, 11ax HE80 MCS11: -56dBm
d) 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm
3/ 2.4GHz:
a) 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm
b) 11ax HE40 MCS0: -92dBm, 11ax HE40 MCS11: -62dBm
– Wireless Functions: LED Control, Access Control, Power Schedule, Wi-Fi Coverage
– Wireless Security: 64/128-bit WEP, WPA/WPA-PSK2 encryptions, WPA3
– Transmission Power: FCC: 2.4GHz < 30dBm, 5GHz < 30dBm, 6GHz < 30dBm
OTHERS
– Certification: FCC, RoHS
– System Requirements:
1/ Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
2/ Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
– Environment:
a) Operating Temperature: 0 Degree Celsius – 40 Degree Celsius
b) Storage Temperature: -40 Degree Celsius – 70 Degree Celsius
c) Operating Humidity: 10% – 90% non-condensing
d) Storage Humidity: 5% – 90% non-condensing What’s in the box
1 x TL-RE815XE Wi-Fi Range Extender
1 x Quick Installation Guide
