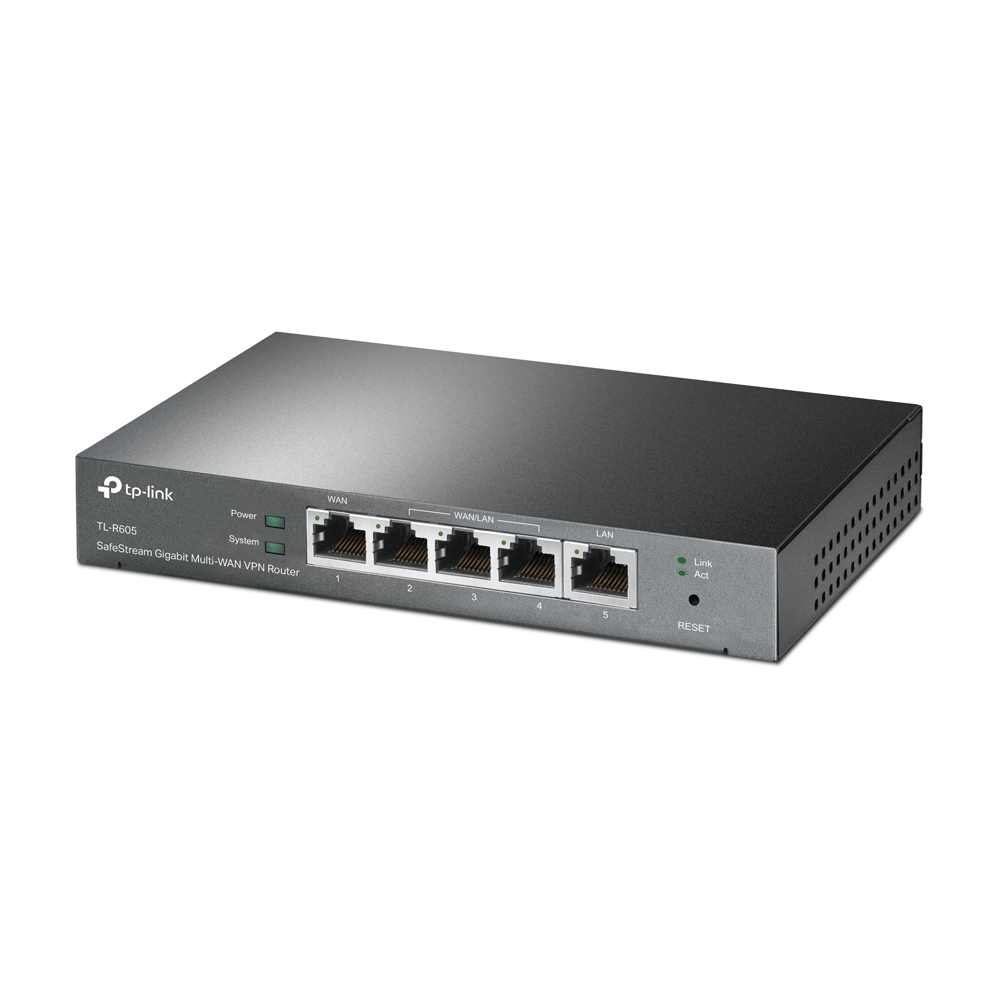

TP-LINK SAFESTREAM GIGABIT MULTI-WAN VPN

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Five Gigabit Ports: High-speed wired connectivity.
Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN/LAN ports optimize bandwidth usage.
Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections.
Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and ...more security functions protect your network and data. Standards and Protocols
IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPSec, PPTP, L2TP
Interface
1 Fixed Gigabit WAN Port
1 Fixed Gigabit LAN Port
3 Changeable Gigabit WAN/LAN Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100? STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply External 9V/0.85A DC Adapter
Flash SPI 16MB
DRAM 128 MB
LED PWR, SYS, WAN, LAN
Dimensions ( W x D x H ) 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
PERFORMANCE
Concurrent Session 25,000
IPsec VPN Throughput 41.5 Mbps
BASIC FUNCTIONS
WAN Connection Type
Static/Dynamic IP
PPPoE
PPTP
L2TP
DHCP
DHCP Server/Client
DHCP Address Reservation
Multi-net DHCP
MAC Clone Modify WAN MAC Address
IPTV IGMP v2/v3 Proxy
IPv6 Developing*
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing
Static Routing
Policy Routing
VLAN 802.1Q VLAN
ARP Inspection IP/MAC Binding
Bandwidth Control
IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
Forwarding
Virtual Server
Port Triggering
DMZ
UPnP
One-to-One NAT
Security
SPI Firewall
VPN Passthrough
FTP/H.323/PPTP/SIP/IPsec ALG
DoS Defence, Ping of Death
Local Management
VPN
20 IPsec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
16 PPTP VPN Tunnels
PPTP VPN Server
PPTP with MPPE Encryption
L2TP VPN
16 L2TP VPN Tunnels
OpenVPN
16 OpenVPN Tunnels
MANAGEMENT
Omada App: Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Maintenance
Time Setting
Diagnostic
Firmware Upgrade
Factory Defaults/Reboot
Backup&Restore
System Log
Remote Management
Statistics
Controller Settings
SNMP Management Features
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)*
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing What’s in the box
TL-R605
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
