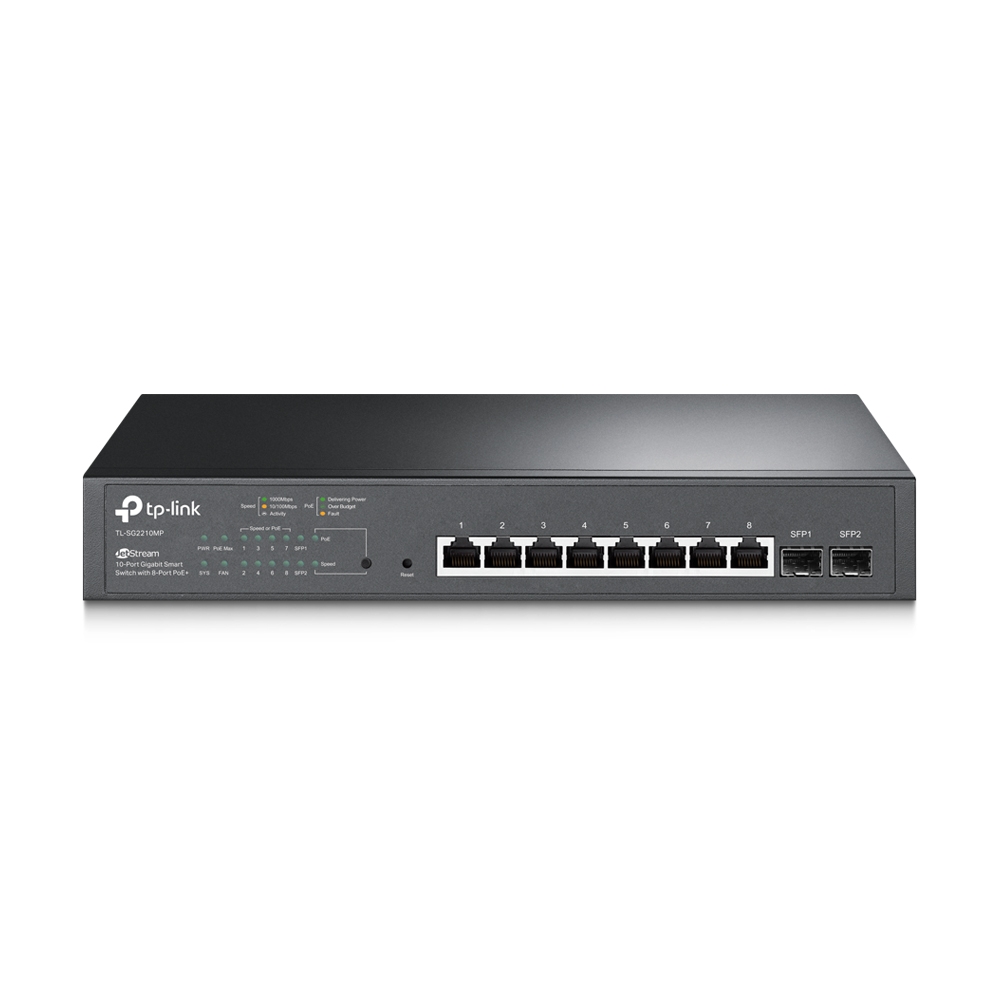

Tp-Link SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Realize More Possibilities with Omada
JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ 150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W. Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections. Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP ...Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. Centralized Cloud Management
Omada SDN Platform Integration Advanced L2 Features
L2/L3/L4 QoS, ACL, IGMP Snooping and More Abundant Security Strategies
LAN Area Investment Protection PoE+ Output
8 PoE+ Ports with Total 150 W Power Budget Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. SPECIFICATIONS HARDWARE FEATURES Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p Interface
– 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
– 2× 100/1000 Mbps SFP Slots Network Media
– 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
– 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
– 100BASE-FX: MMF, SMF
– 1000BASE-X: MMF, SMF Fan Quantity
1 Physical Security Lock
Yes PoE+ Ports(RJ45)
– Standard: 802.3at/af compliant
– PoE+ Ports: 8 Ports
– Power Supply: 150 W Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm) Mounting
Rackmount/Desktop Max Power Consumption
– 12.2 W (110 V / 60 Hz with no PD connected)
– 173.9 W (110 V / 60 Hz with 150 W PD connected) Max Heat Dissipation
– 41.63 BTU/h (with no PD connected)
– 539.35 BTU/h (with 150 W PD connected) PERFORMANCE Switching Capacity
20 Gbps Packet Forwarding Rate
14.9 Mpps MAC Address Table
8K Packet Buffer Memory
4.1 Mbit Jumbo Frame
9 KB SOFTWARE FEATURES Quality of Service
– 802.1p CoS/DSCP priority
– 8 priority queues
– Priority Schedule Mode
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– Queue Weight Config
– Bandwidth Control
– Port/Flow based Rating Limit
– Smoother Performance
– Storm Control
– Multiple Control Modes(kbps/ratio)
– Broadcast/Multicast/Unknown-Unicast Control L2 and L2+ Features
– DHCP Relay
– DHCP VLAN Relay
– DHCP L2 Relay
– Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports per group
– Spanning Tree Protocol
– 802.1D STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter/Protect, Root Protect
– Loopback Detection
– Flow Control
– 802.3x Flow Control
– Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Flow-Based
– Ingress/Egress/Both
– Device Link Detect Protocol (DLDP)
– 802.1ab LLDP/ LLDP-MED L2 Multicast
– 511 IPv4, IPv6 shared multicast groups
– IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– Static Group Config
– Multicast VLAN Registration (MVR)
– Multicast Filtering
– MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast (256 profiles and 16 entries per profile) IPv6 Support
– IPv6 Dual IPv4/IPv6
– Multicast Listener Discovery (MLD) Snooping
– IPv6 neighbor discovery (ND)
– Path maximum transmission unit (MTU) discovery
– Internet Control Message Protocol (ICMP) version 6
– TCPv6/UDPv6
– IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP VLAN
– VLAN Group
– Max. 4K VLAN Groups
– 802.1Q tag VLAN
– MAC VLAN
– Protocol VLAN
– GVRP
– Voice VLAN Access Control List
– Support up to 230 entries
– Time-Range
– Time Slice
– Week Time-Range
– Absolute Time-Range
– Holiday
– Time-based ACL
– MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
– IP ACL
– Source IP
– Destination IP
– IP Protocol
– TCP Flag
– TCP/UDP Source Port
– TCP/UDP Destination Port
– DSCP/IP TOS
– IPv6 ACL
– Combined ACL
– Rule Operation
– Permit/Deny
– Policy Action
– Mirror
– Rate Limit
– Redirect
– QoS Remark
– ACL Rules Binding
– Port Binding
– VLAN Binding
– Actions for flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark Security
– AAA
– 802.1X
– Port based authentication
– MAC (Host) based authentication
– Authentication Method includes PAP/EAP-MD5
– MAB
– Guest VLAN
– Support Radius authentication and accountability
– IP/IPv6-MAC Binding
– 512 Binding Entries
– DHCP Snooping
– DHCPv6 Snooping
– ARP Inspection
– ND Detection
– IP Source Guard
– 253 Entries
– Source IP+Source MAC
– IPv6 Source Guard
– 183 Entries
– Source IPv6 Address+Source MAC
– DoS Defend
– Static/Dynamic/Permanent Port Security
– Up to 64 MAC addresses per port
– Broadcast/Multicast/Unicast Storm Control
– kbps/ratio control mode
– Port Isolation
– Secure web management through HTTPS with SSLv3/TLS 1.2
– Secure Command Line Interface (CLI) management with SSHv1/SSHv2
– IP/Port/MAC based access control MIBs
– MIB II (RFC1213)
– Bridge MIB (RFC1493)
– P/Q-Bridge MIB (RFC2674)
– Radius Accounting Client MIB (RFC2620)
– Radius Authentication Client MIB (RFC2618)
– Remote Ping, Traceroute MIB (RFC2925)
– Support TP-Link private MIBs
– RMON MIB(RFC1757, rmon 1,2,3,9) MANAGEMENT Omada App
Yes Centralized Management
– Omada Cloud-Based Controller
– Omada Hardware Controller (OC300)
– Omada Hardware Controller (OC200)
– Omada Software Controller Cloud Access
Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Management Features
– Web-based GUI
– Command Line Interface (CLI) through telnet
– SNMPv1/v2c/v3
– SNMP Trap/Inform
– RMON (1,2,3,9 groups)
– SDM Template
– DHCP/BOOTP Client
– Dual Image, Dual Configuration
– CPU Monitoring
– Cable Diagnostics
– EEE
– SNTP
– System Log
OTHERS Certification
CE, FCC, RoHS System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10, MAC® OS, NetWare®, UNIX® or Linux. Environment
– Operating Temperature: 0–50 ? (32–122 ?);
– Storage Temperature: -40–70 ? (-40–158 ?)
– Operating Humidity: 10–90% RH non-condensing
– Storage Humidity: 5–90% RH non-condensing What’s in the box
1 x TL-SG2210MP
1 x Power Cord
1 x Installation Guide
1 x Rackmount Kit
1 x Rubber Feet
