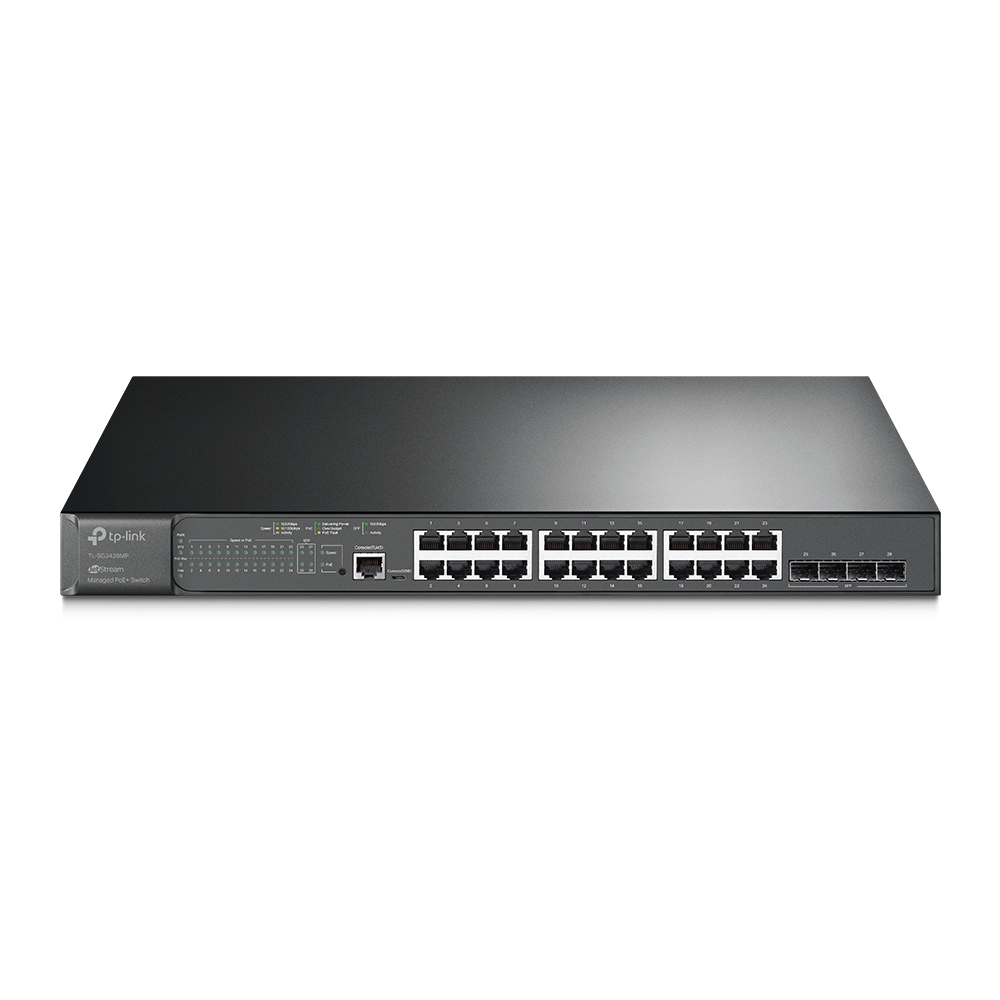

Tp-Link SG3428MP JetStream 28-Port Gigabit L2+ Switch with 24-Port PoE+

Convenient Gigabit Switch with 24-Port PoE+ for a Complete Omada Network
JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ 384 W PoE Budget: 24 802.3at/af-compliant PoE+ ports with a total power supply of 384 W. Full Gigabit Ports: 24 gigabit PoE+ ports and 4 gigabit SFP Slots provide high-speed connections. Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring. Centralized Management: Cloud access and Omada app for ultra convenience and easy management. Static Routing: Helps route internal traffic for more efficient ...use of network resources. Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping. Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities. PoE+ Output
24 Gigabit PoE+ Ports with Total 384 W Power Budgetx Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network Robust Security Strategies
LAN Area Investment Protection Advanced L2+ Features
Static Routing, IGMP Snooping
802.1 Q VLAN and More Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications
Features 24 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget.
Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Software Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network- all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. Abundant L2 and L2+ Features
A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. ISP Features
QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events. SPECIFICATIONS HARDWARE FEATURES Interface
24 10/100/1000Mbps RJ45 Ports
4 Gigabit SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port Fan Quantity
2 Power Supply
100-240 V AC~50/60 Hz PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports, up to 30 W per port
Power Budget: 384 W PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports, up to 30 W per port
Power Budget: 384 Wx Dimensions ( W x D x H )
17.3 13.0 1.7 in (440 330 44 mm) Mounting Rack Mountable Max Power Consumption
442.1 W (220 V/50 Hz) (with 384 W PD connected) Max Heat Dissipation
1508.67 BTU/hr (220 V/50 Hz) (with 384 W PD connected) PERFORMANCE Switching Capacity
56 Gbps Packet Forwarding Rate
41.66 Mpps MAC Address Table
16K Packet Buffer Memory
4.1 Mbit Jumbo Frame
9 KB SOFTWARE FEATURES Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
– SP (Strict Priority)
– WRR (Weighted Round Robin)
– SP+WRR
Bandwidth Control
– Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
– Mirror (to supported interface)
– Redirect (to supported interface)
– Rate Limit
– QoS Remark L2 and L2+ Features
Link Aggregation
– Static link aggregation
– 802.3ad LACP
– Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
– 802.1d STP
– 802.1w RSTP
– 802.1s MSTP
– STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
Loopback Detection
– Port-based
– VLAN based
Flow Control
– 802.3x Flow Control
– HOL Blocking Prevention
Mirroring
– Port Mirroring
– CPU Mirroring
– One-to-One
– Many-to-One
– Tx/Rx/Both L2 Multicast
Supports 511 (IPv4, IPv6) IGMP groups
IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
– IGMP Snooping Querier
– IGMP Authentication
IGMP Authentication
MVR
MLD Snooping
– MLD v1/v2 Snooping
– Fast Leave
– MLD Snooping Querier
– Static Group Config
– Limited IP Multicast
Multicast Filtering: 256 profiles and 16 entries per profile VLAN
VLAN Group
– Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 30 Entries (12 Entries for TL-SG3428MP V1.0)
Protocol VLAN: Protocol Template 16, Protocol
VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
– Port-Based QinQ
– Selective QinQ
Voice VLAN Access Control List
Time-based ACL
MAC ACL
– Source MAC
– Destination MAC
– VLAN ID
– User Priority
– Ether Type
IP ACL
-Source IP
– Destination IP
– Fragment
– IP Protocol
– TCP Flag
– TCP/UDP Port
– DSCP/IP TOS
– User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
– Mirroring
– Redirect
– Rate Limit
– QoS Remark
ACL apply to Port/VLAN Security
IP-MAC-Port Binding
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
IPv6-MAC-Port Binding
– DHCPv6 Snooping
– ND Detection
– IPv6 Source Guard
DoS Defend
Static/Dynamic Port Security
– Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
– kbps/ratio/pps control mode
IP/Port/MAC based access control
802.1X
– Port based authentication
– Mac based authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Support Radius authentication and accountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
– DHCPv6 Client
– Ping6
– Tracert6
– Telnet (v6)
– IPv6 SNMP
– IPv6 SSH
– IPv6 SSL
– Http/Https
– IPv6 TFTP L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
– 48 static routes
Static ARP
– 128 static entries
316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
– DHCP interface relay
– DHCP VLAN relay
DHCP L2 Relay Management
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log Advanced Features
Support Omada Hardware Controller (OC200/OC300), Software Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9) MANAGEMENT Omada App
Yes, through
Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
OC300
OC200
Omada Software Controller Centralized Management
Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller Cloud Access
Yes, through
Omada Cloud-Based Controller (Not Supported by TL-SG3428MP v3)
OC300
OC200
Omada Software Controller Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller (Supported byTL-SG3428MP v1, v2, v4 and above, while is not supported by TL-SG3428MP v3) Management Features
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
– Trap/Inform
– RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log OTHERS Certification
CE, FCC, RoHS System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. Environment
Operating Temperature: 0–45 ? (32–113 ?);
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing What’s in the box
1x TL-SG3428MP Switch
1x Power Cord
1x Quick Installation Guide
1x Rackmount Kit
1x Rubber Feet
