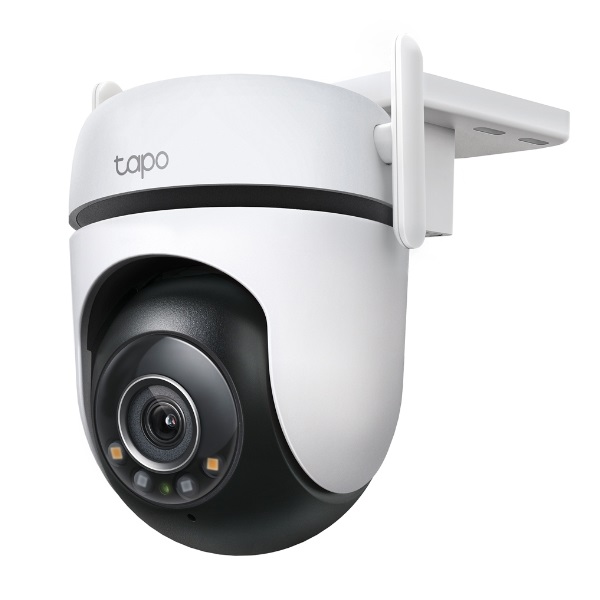

TP-Link TAPO C520WS Outdoor Pan/Tilt Security Wi-Fi Camera

TAPO-C520WS
– 2K QHD Live View: Adopting a 2560 1440 resolution, TAPO C520WS provides 1.7 x more pixels and delivers sharper images than 1080p.
– Starlight Color Night Vision: Adopting an F1.6 large-aperture lens and starlight sensor, TAPO C520WS captures more light and has higher photosensitivity, thus rendering brighter colors under lower light conditions than full-color night vision cameras with an F2.2 lens and ordinary sensor.
– 360 degree Visual Coverage: Provides 360 degree horizontal & 130 degree vertical viewing range, enabling you ...to focus on more vital areas and eliminate blind spots.
– Free Person/Pet/Vehicle Detection: Smart AI identifies people, pets, and vehicles, notifying users as needed.
– Customizable Sound and Light Alarm: Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.
– Secure Local & Cloud Storage: Save recorded videos to a Micro-SD card (1) or by using TAPO Care(2) cloud services.
– IP66 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.
– Wired/Wireless Networking: Connect your camera to the network through Wi-Fi or Ethernet for more flexible installation. Smart. Secure. Easy.
All-Round Protection with Vivid Colors
Outdoor Pan/Tilt Security Wi-Fi Camera
TAPO C520WS Features:
Brighter than Full-Color:
– TAPO C520WS renders brighter images than other full-color night vision cameras with spotlights on due to its starlight sensor.
See Colors in Low Light:
– Equipped with an F1.6 large-aperture lens and starlight sensor, TAPO C520WS captures more light and has higher photosensitivity, revealing colorful images even without spotlights on.
Multiple Night Vision Modes:
– TAPO C520WS offers 3 night vision modes to choose from. Full-Color Mode provides 24/7 full-time colors while Smart Mode will only turn on spotlights for colorful pictures when an event is detected. Infrared Mode is also supported for your convenience.
2K QHD Crystal Clear View:
– Now with 1.7 times more pixels than 1080p, providing clearer videos and more crisp photos.
360 degree Visual Coverage:
– Provides 360 degree horizontal & 130 degree vertical view range to capture everything around.
Multiple AI Detection, All for Free!
– Smart AI identifies people, pets, and vehicles, notifying users as needed. All are provided for free.
Customize Your Detection:
– Adjust the sensitivity of motion detection and set up activity zones/boundaries for your convenience. You can also turn on the patrol mode to keep the camera cruising between two customized points.
a) Motion Detection
b) Activity Zones
c) Line Crossing Detection
d) Patrol Mode
Reliable Networking, Flexible Connection:
– Dual powerful external antennas provides larger wireless coverage (up to 492ft in open areas) and more stable connection. You can also connect you’re your camera to the network through the RJ45 Ethernet port.
(Note that the 492ft (+/- 150m) wireless coverage is based on TP-Link tests in open areas. Actual experience may vary due to environment, router specifications, and other factors.)
Customizable Sound and Light Alarm:
– Record your own audio as an alarm to extend your usages. The ultra-bright and adjustable light is also supported to frighten unwanted visitors away.
Secure Local & Cloud Storage:
– Save recorded videos to a Micro-SD card (1) (up to 512GB) or by using TAPO Care (2) cloud services.
1/ Enjoy 24/7 continuous recording and playback with a Micro-SD card (1) (up to 512GB, equals to 680 hours of 2K QHD footage).
2/ Receive rich notifications with snapshots, encrypted protection, data backups, and 30-day video clip history with TAPO Care (2) cloud services.
(Note that TAPO Care cloud storage services require a subscription. A free trial for the first month is provided.)
IP66 Weatherproof:
– Offers excellent waterproof and dustproof performance for outdoor scenarios.
Smart Motion Tracking:
– Tracks motion with high-speed rotation to keep the object within the camera’s view.
Two-Way Audio:
– Communicate directly with the outdoors for your convenience.
Multiple Installation Options:
– Use the mounting screws, template and loops (3) to install on any wall, ceiling or pole for the perfect view-wherever you want.
Physical Privacy Mode:
– Maintains your privacy with the lens physically blocked by the housing.
Voice Activated:
– Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported. (4) (5)
Dedicated TAPO App:
– Live view, playback, save clips and set up-all in one app.
1) Download the TAPO app.
2) Turn on your camera.
3) Follow the in-app guide Notes:
1/ Micro-SD card purchased separately. Actual storage capacity depends on the size of the Micro-SD card used. Actual storage time also may vary with use.
2/ Subscribe for cloud storage at http://www.tapo.com/tapocare/
3/ Mounting loops purchased separately.
4/ Compatible with Alexa and Google Assistant. User experience is dependent on the connected device’s specifications.
5/ Amazon Alexa and Google Assistant are not available in all languages and countries. Specifications:
SPECIFICATIONS
CAMERA
– Image Sensor: 1/3” CMOS
– Resolution: 2K QHD 4MP (2560 1440 px)
– Lens:
a) F/NO: 1.61 +/- 10%
b) Focal Length: 3.18mm +/- 5%
– View Range: 360 degree horizontal and 130 degree vertical
– Night Vision: 850 nm IR LED up to 98ft (+/- 30m), Starlight Color Night Vision
– Weatherproof Rating: IP66
VIDEO
– Frame Rate: Up to 25/30fps
– Video Streaming: 2K QHD
– Video Compression: H.264
AUDIO
– Audio Communication: Two-Way
– Audio Input & Output: Built-in Microphone and Speaker
NETWORK
– Standards and Protocols: IEEE 802.11b/g/n
– Security: 128 bit AES encryption with SSL/TLS
– Protocol: TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
– Frequency: 2.4GHz
– Wireless Security: WPA/WPA2-PSK
ACTIVITY NOTIFICATIONS
– Input Trigger: Motion detection, Person detection, Pet detection, Vehicle detection, Line-Crossing detection
– Output Notification: Snapshot (TAPO care), Clips (TAPO care)
HARDWARE
– Button: RESET Button
– Indicator LED: System LED
– Adapter Input: 100 – 240V, 50/60Hz
– Adapter Output: 9V, 0.85A (DC Power)
ENVIRONMENT
– Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
– Storage Temperature: -40 Degree Celsius – 60 Degree Celsius
– Operating Humidity: 10% – 90%RH, Non-condensing
– Storage Humidity: 0 – 90%RH, Non-condensing
OTHERS
– Certification: CE, FCC, RoHS, RCM What’s in the box
1 x TAPO C520WS Camera
1 x Power Adapter (3.0m)
1 x Mounting Anchors set
1 x Mounting Screws set
1 x Bracket Screws
1 x Mounting Template
1 x Mounting Bracket
1 x Waterproof Seal
1 x Waterproof Cable Attachments
1 x Quick Start Guide
