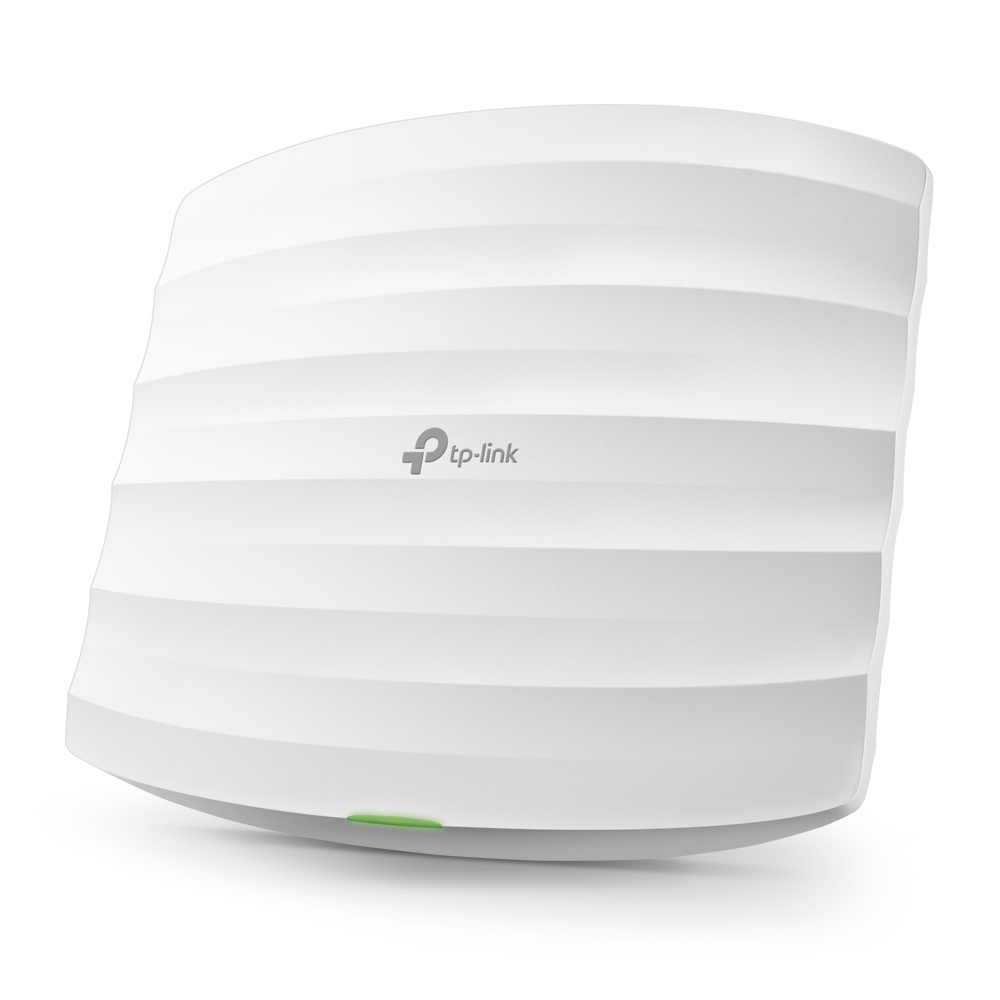

TP-Link TL-EAP245 AC1750 Wireless Dual Band Ceiling/Wall Gigabit AP

AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
EAP245 Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
Free cloud centralized management and Omada app for ultra convenience and easy management
Support Power over Ethernet(802.3at/802.3af) for convenient and affordable installation
Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) ...and abundant wireless security technologies.
Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
Load balance ensures large numbers of users have smooth network experiences in high density business networks
Supports management VLAN for an enhanced network management An Elite Business-Class
AC1750 MU-MIMO Wi-Fi Solution
Omada EAP245 Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands. Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted. Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible. Cloud Centralized Management – Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself. Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet. Specifications
Hardware Features
Interface : 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af PoE and Passive PoE)
Physical Security Lock : Yes
Button : Reset
Power Supply : 802.3af/A PoE
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption : 12.3 W
Dimensions ( W x D x H ) : 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm)
Antenna Type : Internal Omni
2.4GHz: 3* 3.5dBi
5GHz: 3*4dBi
Mounting : Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog : Yes Wireless Features
Wireless Standards : IEEE 802.11ac/n/g/b/a
Frequency : 2.4GHz and 5GHz
Signal Rate : 5GHz:Up to 1300Mbps
2.4GHz : Up to 450Mbps Wireless Functions
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK Transmission Power
CE?
?20dBm(2.4GHz)
?23dBm(5GHz)
FCC:
?24dBm(2.4GHz)
?24dBm(5GHz) Management
Omada App : Yes
Centralized Management : Omada Software Controller OC200
Cloud Access : Yes (Through Omada Software Controller or OC200)
EAP Controller Software : Yes
Email Alerts : Yes
LED ON/OFF Control : Yes
Management MAC Access Control : Yes
SNMP : Yes
System Logging Local/Remote Syslog : Local/Remote Syslog
Telnet : Yes
SSH : Yes
Web-based Management : HTTP/HTTPS
L3 Management : Yes
Multi-site Management : Yes
Management VLAN : Yes Others
Certification : CE, FCC, RoHS
System Requirements : Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment :
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Gigabit Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
