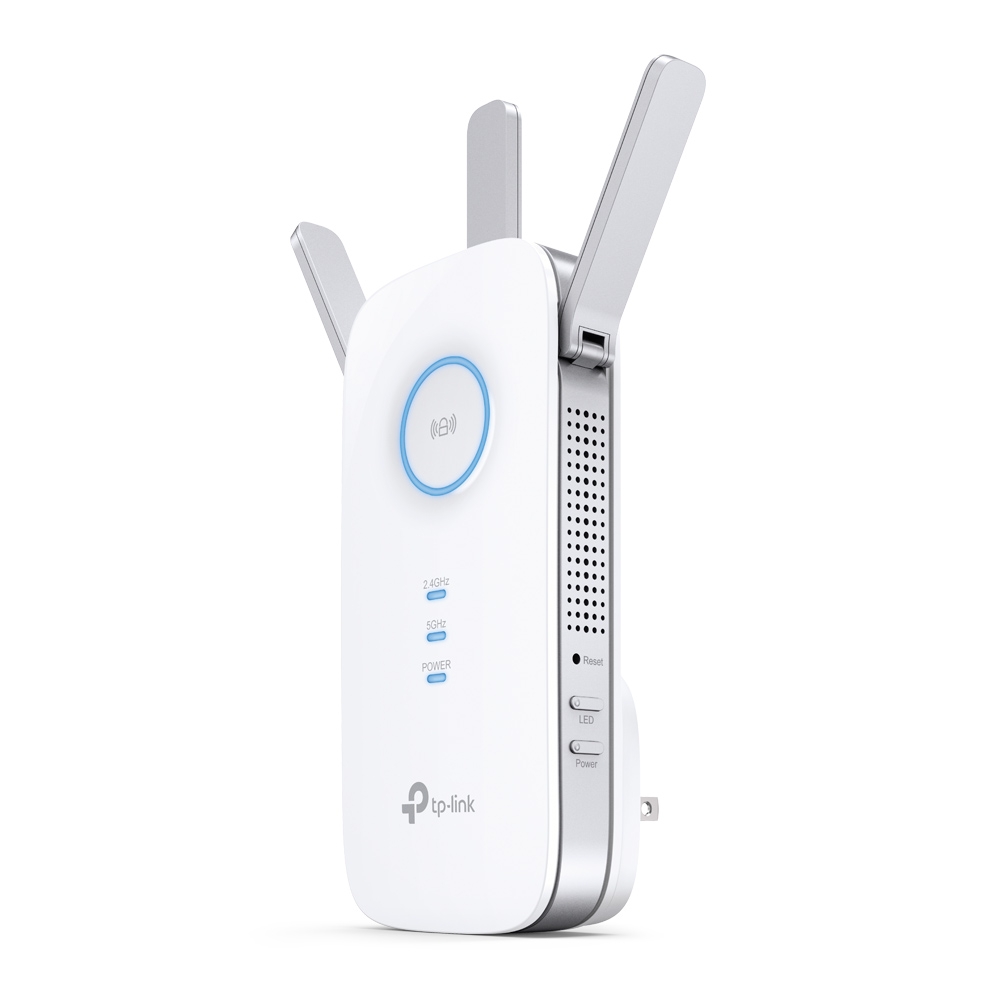

TP-Link TL-RE455 AC1750 Wireless Range Extender Plug

RE 455 – AC1750 Wi-Fi Range Extender Maximum Coverage – Extend Wi-Fi coverage by up to 1,115 m2?12,000sq. ft?.
AC1750 Dual-Band Wi-Fi – Simultaneous 450Mbps on 2.4GHz + 1300Mbps on 5GHz
Three Antennas – Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections
Gigabit Ethernet port – Act as a wireless adapter to connect a wired device to your network at Gigabit speed
Intelligent Signal Light – Help to find the best location for optimal Wi-Fi coverage by showing the signal strength<...br /> AP Mode – Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability
TP-Link Tether App – Easily access and manage your network using any iOS or Android mobile device
Ultimate Compatibility – Extend the range of any Wi-Fi router or wireless access point EXPAND WI-FI NETWORK FOR ULTIMATE PERFORMANCE
AC1750 Wi-Fi Range Extender – RE455 Boost Your Wi-Fi Coverage Up to 10,000 sq ft
Tired of Wi-Fi “dead zones”? The TP-Link AC1750 Wi-Fi Range Extender connects to your router wirelessly, strengthening and expanding its signal into areas it can’t reach on its own. The device also reduces signal
interference to ensure reliable Wi-Fi coverage throughout your home or office. Super-Fast Speed Next Generation AC Wi-Fi
TP-Link’s RE455 comes with next-generation 802.11AC Wi-Fi technology, it’s 3 times faster than the standard 802.11n speeds. The RE455 delivers fast speeds of dual-band Wi-Fi up to 1.75Gbps, providing reliable connections for bandwidth-intensive tasks like HD/4K streaming, lag-free gaming, large file downloads. Gigabit Wired Speed
A gigabit Ethernet port turns the extender into a wireless bridge, letting you connect a wired device like a Blu-ray player, gaming console, DVR, or smart TV to your Wi-Fi network. Easy Installation & Quick Position
Easy Installation with RE Button
The extender RE455 works with any standard wireless router. Instantly connect the RE455 to a router by pressing the extender’s RE button followed by the router’s WPS button (if available). Once connected with an existing router, you can take RE455 anywhere within the wireless range of the existing router, no more further configurations Quick Positioning With Intelligent Signal Indicator
The Intelligent signal light can help to find the best location to place the extender. High-Performance External Antennas
Three external dual-band antennas (3 x 2dBi for 2.4GHz and 3 x 3dBi for 5GHz) boost your wireless coverage and reliability, helping your devices stay connected anywhere your network reaches. High-Speed Mode
High-Speed mode maximizes overall performance by combining the bandwidth of both the 5GHz and 2.4GHz channels to create a lightning-fast connection with one band sending data and the other receiving it. Specifications
Hardware Features
Protocols and Standards: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface: 1 x 10/100/1000M Ethernet Port (RJ45)
Button: WPS Button, Reset Button, LED Button, Power Button
Energy consumption: 10W?max power consumption?
Dimensions (W x D x H): 6.4 x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)
Antenna: 3 x external WI-Fi Functionalities
Frequencies: 2.4GHz & 5GHz(11ac)
Signal Rate: 5GHz:Up to 1300Mbps, 2.4GHz:Up to 450Mpbs Reception Sensitivity:
5GHz?
11a 6Mbps:-93dBm@10% PER
11a 54Mbps: -76dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -64dBm@10% PER
11ac HT80 mcs9: -61dBm@10% PER
2.4GHz
11g 54M: -77dBm@10% PER
11n HT20 mcs7: -73dBm@10% PER
11n HT40 mcs7: -70dBm@10% PER Modos Wireless: Range Extender/Access Point Wireless Functions:
Wireless Statistic
Concurrent Mode Boost Both 2.4G/5G WiFi-Band
Access Control
LED Control
Domain Login Function
Wi-Fi Coverage Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
Transmission Power: <20dBm(2.4GHz), <23dBm(5GHz) Others
Certifications: CE, FCC, RoHS
Box Dimensions (W x D x H): 7.9 x 4.9 x 3.4in. (202x 125 x 86mm)
System requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment: Operating Temperature: 0°C~30°C (32°F~86°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
1 x AC1750 Wi-Fi Range Extender RE455
1 x Quick Installation Guide
