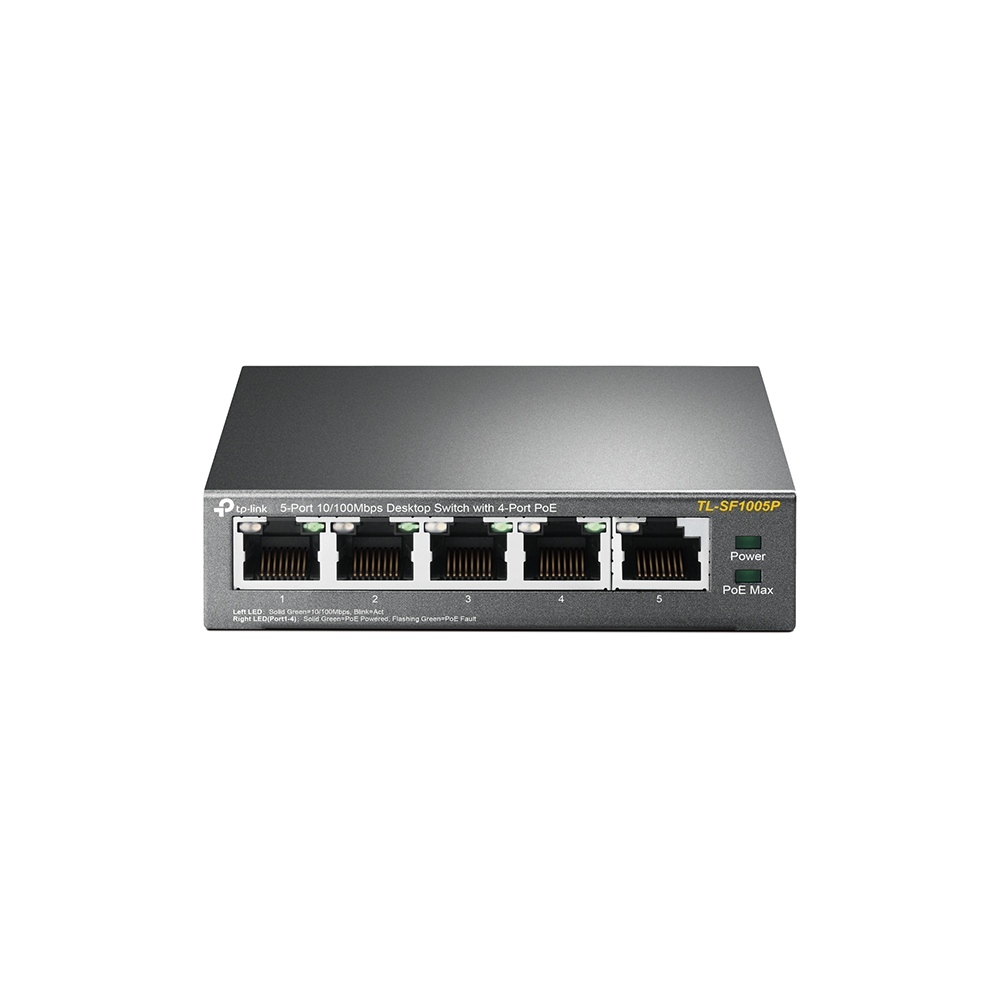

TP-Link TL-SF1005P 5 Port Desktop POE 10/100 Switch

5-Port 10/100Mbps Desktop Switch with 4-Port PoE
TL-SF1005P 5 x 10/100Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 58W for all PoE ports
Requires no configuration and installation PoE Switches for Your Ultra Convenience
5-Port 10/100Mbps Desktop Switch with 4-Port ...PoE Surveillance : Work with IP Cameras
Conference Call : Work with IP Phones
Wi-Fi Coverage : Work with Omada EAPs Easy To Use
Connect to Power
Connect to Devices
Enjoy Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation. Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation. Specifications
Hardware Features
Interface : 5 x 10/100Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media :
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
Fan Quantity : Fanless
External Power Supply : External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) :
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 58W
Mac Address Table : 2K
Switching Capacity : 1Gbps
Dimensions ( W x D x H ) : 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transmission Distance : Store-And-Forward
Max Power Consumption :
1.678W (max. no PD connected)
64.82W (max. with 58w PD connected)
Max Heat Dissipation :
5.73BTU/h(no PD connected)
221.17BTU/h(with 58W PD connected) Software Features
Transmission Method : Store-And-Forward
Advanced Functions :
Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode Others
Certification : FCC, CE, RoHS
Environment :
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing What’s in the box
TP-Link 5-Port FE 4-Port POE Desktop Switch
