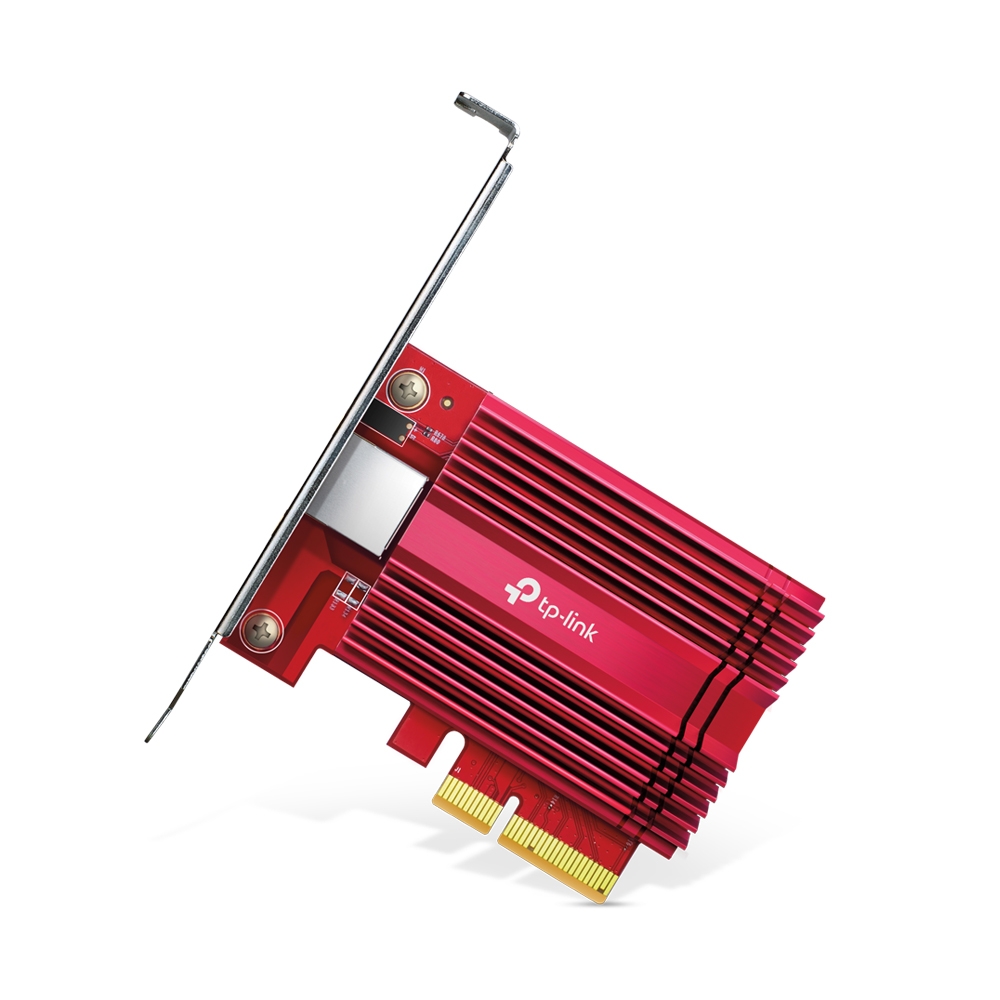

TP-Link TX 401 10 Gigabit PCI Express Network Adapter

• 10Gbps Networking: Combined with the latest 10GBase-T Technology, TP-Link TX401 delivers extreme speeds of up to 10Gbps, which is 10x faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions. (1)
• Versatile Compatibility: With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
• CAT6A Ethernet Cable: To maximize TP-Link TX401’s performance, a 1.5...m CAT6A Ethernet Cable is included-rated for up to 10Gbps while a regular cable is only rated for 1Gbps.
• Low-Profile and Full-Height Brackets: In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
• Comprehensive System Support: Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs. (2)

Arm Your PC with the Latest 10G Speeds
PCIe 3.0 Slot to 10 Gigabit Ethernet Network Adapter
TP-Link TX401 Features:
Upgrade to 10G Networking:
– 10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second-10x faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.
a) 10Gbps Internet Access: Make Full Use of Your High-Speed Internet Access.
b) 10Gbps NAS Connection: Lightning-Fast Local Data Transmissions.
c) 10Gbps Host Server Building: High Hardware Configuration for a Powerful Server.
Play Never Ends with 10G:
– With 10Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
Local Data Transmissions in Seconds:
– For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
Versatile, Multi-Speed Compatibility:
– 10GBase-T is backwards compatible with multiple data rates, including 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.
QoS Support: A Bandwidth Buff for Gaming.
– Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.
1/ Strengthened PCI Express 3.0 x4: Supports PCI Express Gen3 x4 for more efficient data transmissions.
2/ Easy Setup: Simple software installation with the intuitive Utility on the provided CD.
3/ Comprehensive System Support: Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux. Notes:
1/ Maximum wired data throughput rates are the physical rates derived from IEEE Standard 802.3 specifications. Actual wired data throughput is not guaranteed and will vary as a result of environmental factors, Ethernet cable class, and computer performance. 2/ To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can check the full list of the supported OS in the download center at tp-link.com/download-center. Specifications:
HARDWARE FEATURES
– Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an,
IEEE802.3az, IEEE 802.3x
– Interface : 1 x PCI Express 3.0 x4, 1 x RJ45 Gigabit/Megabit Port
– Network Media: 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
– LED: 10Gbps Link/Act, 5/2.5/1Gbps and 100 Mbps Link/Act
– Data Rates: 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, 10Gbps for Half-Duplex mode, 200Mbps, 2Gbps, 5Gbps, 10Gbps, 20Gbps for Full-Duplex mode
– Dimensions: 12,08 x 9,82 x 2,15cm
– Flow Control: 802.3x
OTHERS
– Certification: FCC, CE, RoHS
– System Requirements: Windows 11/10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux
– Operating Temperature: 0 C Degree Celsius – 40 C Degree Celsius
– Operating Humidity: 10% – 90% non-condensing
– Storage Humidity: 5% – 90% non-condensing What’s in the box
1 x TP-Link TX401 10Gigabit PCIe Network Adapter
1 x Standard/Low-Profile Brackets
1x Quick Installation Guide
1 x Resource CD
1 x 1.5m CAT6A Ethernet Cable
