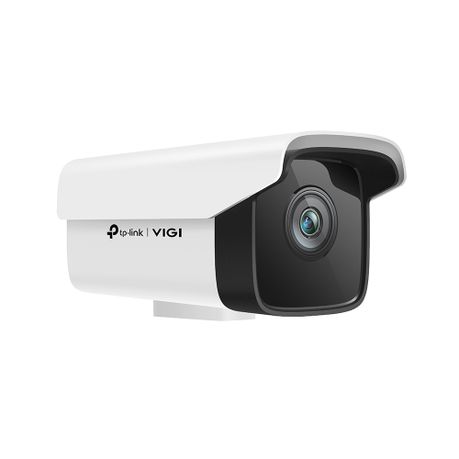

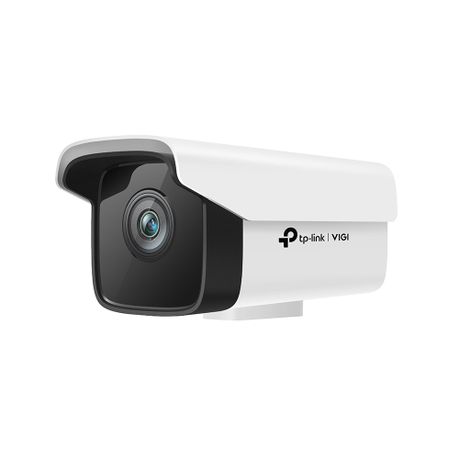

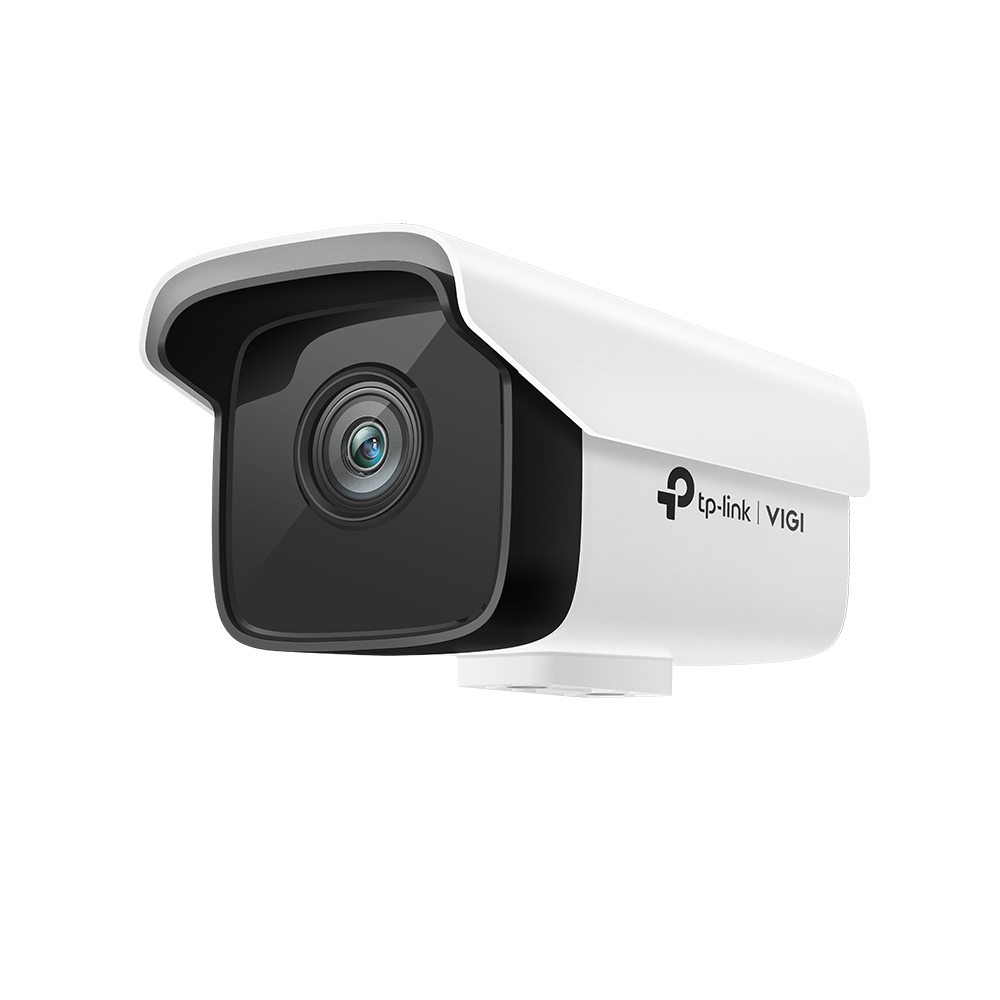

TP-LINK VIGI 3MP Outdoor Bullet Network Camera – 4mm Lens

3MP Ultra-High Definition: The VIGI C300 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
4/6mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C300 comes with two different lens versions to better suit your security needs.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what’s happening for future inspection.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
VIGI App: Manage your security from the palm of your hand with the VIGI app.

NETWORK
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API: ONVIF
Simultaneous Live View: 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams

GENERAL
Operating Temperature: -30–60 °C
Dimensions( H X W X D ): 164.9 × 87.4 × 83.4 mm
Material: Plastic
Weight: 283.5g
Power Requirements: 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

CAMERA
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens: 4 mm / 6 mm
Aperture: 4 mm: F2.4
6 mm: F2.0:
Lens Mount: M12
Viewing Angle 4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°
6 mm, horizontal FOV: 54°, vertical FOV: 31°, diagonal FOV: 62°
Day/Night Mechanism IR Cut Filter
IR Working Distance: 30m
Minimum Illumination Color: 0.1 Lux@F2.0; 0 Lux with IR
Weatherproof Rating: IP67
Digital Noise Reduction:
3D DNR, WDR, DWDR

VIDEO/IMAGE
Video Compression: Main stream: H.265/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720, 704×576, 640×480, 352×288, 320×240
Video Streaming: Main Stream
Sub-Stream:
Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Video Bit Rate: 64 Kbps to 6 Mbps

SMART FEATURE-SET
Smart Event: Area Intrusion Detection, Line-Crossing Detection
Basic Event: Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method: Trigger Notification: ONVIF, HTTPS

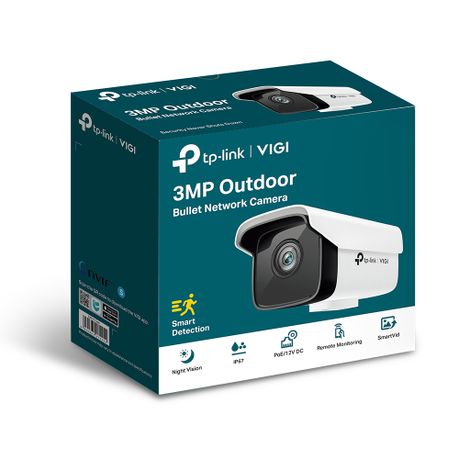

What’s in the box
TP-LINK VIGI 3MP Outdoor Bullet Network Camera – 4mm Lens
