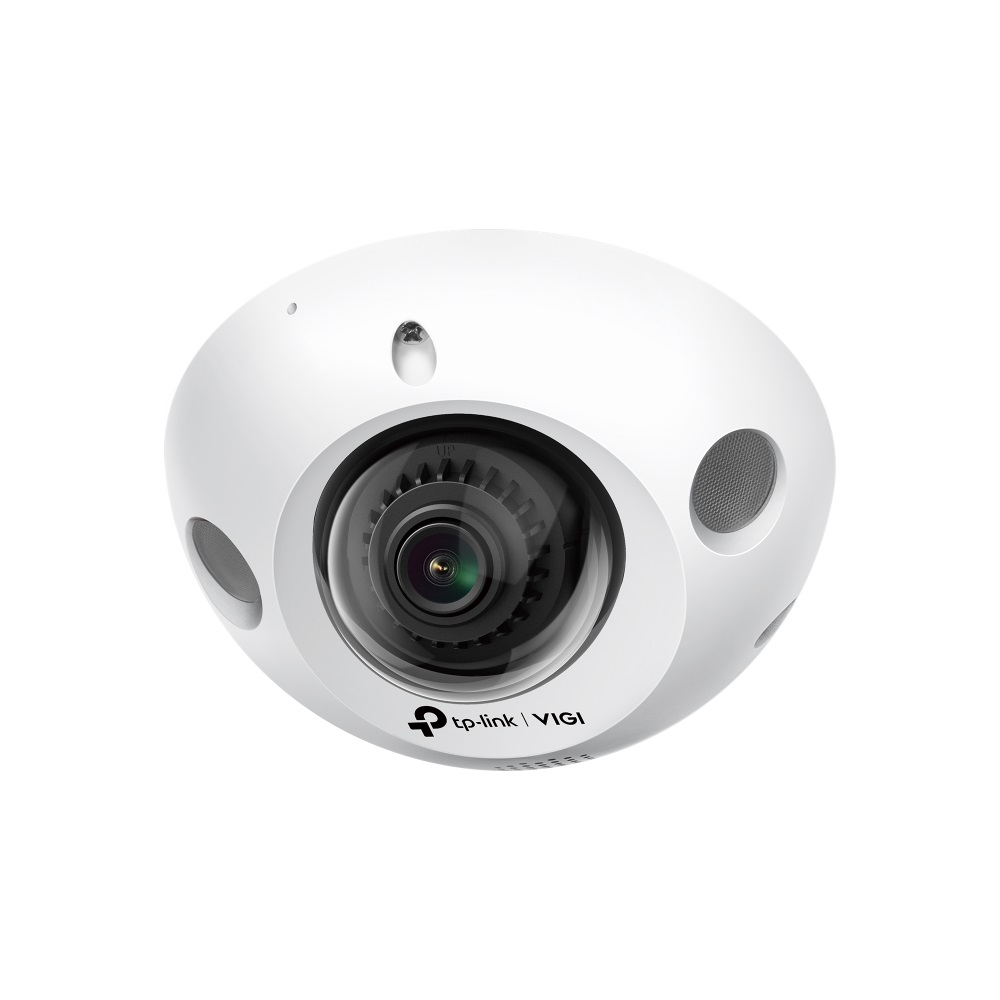

TP-Link VIGI C230IMINI-2.8 3MP IR Mini Dome Network Camera (2.8mm)

C230IMINI-2.8
– 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
– Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
– Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
– Small but compact with wide views: ...With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
– IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
– H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
– Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
Security Never Shuts Down
3MP IR Mini Dome Network Camera
VIGI C230I Mini 2.8mm Features:
Looking for a higher resolution? It’s right here. 3MP Super-High Definition:
– The VIGI C230I Mini Camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification:
– Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection:
– Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
a) Motion Detection
b) Intrusion Detection
c) Object Removal Detection
d) Line-Crossing
e) Camera Tampering
f) Object Abandoned Detection
Small but compact with wide views:
– With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini Camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
Every Event is Under Your Control:
– VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.
IK08 Vandal-Proof:
– Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
More compression. More savings. Same quality.
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
(Please note that the calculations are based on laboratory testing using a 3MP VIGI camera, and actual performance may vary according to the amount of activity recorded, resolution and other variables.)
Never miss a detail. SmartVid-Smart Video Enhancement:
– VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Corridor Mode:
– Corridor mode allows you to change the image aspect ratio from 16:9 to 9:16. This helps to monitor long and narrow areas and provides a more pleasant viewing experience.
No need to check long compatibility lists. Onvif Ensures Compatibility:
– Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Flexible Management and Storage:
– Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with a Micro-SD card slot (up to 256GB – not included in the package).
One system. Full security. Run your business with peace of mind.
– The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. Notes:
1/ The Micro-SD card is not included in the package.
2/ Only use Class 10 or higher Micro-SD card in the camera Specifications:
CAMERA
– Image Sensor: 1/2.8” Progressive Scan CMOS
– Lens: 2.8 mm
– Aperture: F1.6
– Lens Mount: M12
– Viewing Angle:
a) Horizontal FOV: 106.9 degree
b) Vertical FOV: 56.9 degree
c) Diagonal FOV: 127.9 degree
– Day/Night Mechanism: IR Cut Filter
– IR Working Distance: 30m
– Minimum Illumination:
a) Color: 0.1 Lux
b) 0 Lux with IR
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
NETWORK
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– API: ONVIF
– Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
– Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
GENERAL
– Certifications : CE/VCCI/BSMI/KC/ONVIF
– Material: Plastic
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Power Supply: 12V DC +/- 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
– Power Consumption: 12V DC: Max 7.5W, PoE: Class 0
– Vandal Resistant: IK08
VIDEO/IMAGE
– Video Compression:
a) Main Stream: H.265+/H.265/H.264+/H.264
b) Sub-Stream: H.265/H.264
– Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 704×576, 640×480, 352×288, 320×240
– Max. Resolution: 3MP (2304 × 1296)
– Video Streaming: 3 Main Streams, 3 Sub-Streams
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90 degree/270 degree)
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Video Bit Rate: 64Kbps to 4Mbps
– Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET
– Smart Event: Human and Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
– Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
– Linkage Method: Trigger Notification: ONVIF, HTTPS
– Region of Interest: 1 Region
INTERFACES
– Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
– Button: Reset Button
– Video Output: –
– On-board Storage: Built-In Memory Card Slot, Support Micro-SD Card up to 256GB (not included in package)
– Built-in Microphone: Yes
– Built-in Speaker: Yes
– Operating Temperature: -30 degree Celsius – 60 Celsius What’s in the box
1 x VIGI C230IMINI-2.8 Camera
1 x Mounting Accessories set
1 x Mounting Template
1 x Quick Start Guide
