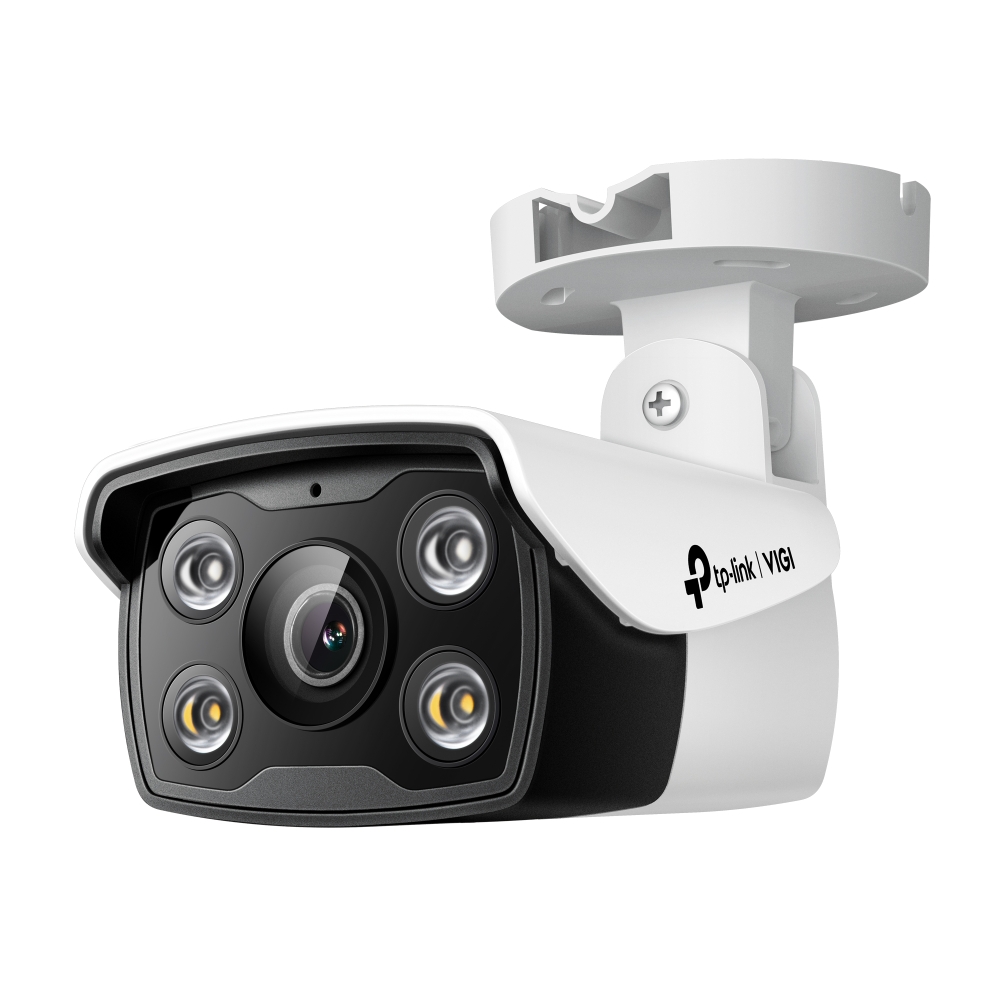

TP-Link VIGI C340-4 4MP Outdoor Full-Colour Bullet Network Camera (4mm)

C340-4
– 4MP High Definition: The camera comes with 4MP – more than enough pixels to pick up some of the more discrete details.
– 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
– Waterproof: Reliable IP66 for stable outdoor performance.
– Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs ...the camera.
– H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
– VIGI App: Manage your security from the palm of your hand with the VIGI app. All The Colors,
All The Time
4MP Outdoor Full-Color Bullet Camera
C340-4 Features:
Outdoor PoE Connection, Simple Wiring:
– Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colours, All in One:
– Monitor 24-hour clear and colourful details even in pitch dark night. VIGI’s Full-Colour camera provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business. Smart Detection:
– Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
a) Motion Detection: Get instant notifications when your camera detects motion.
b) Area Intrusion: Set customized activity zones around key areas for more focused monitoring.
c) Line-Crossing: Set a boundary and receive an alert anytime a person crosses it from either or both directions.
d) Camera Tampering: Receive alerts when someone obstructs the camera.
Active Defense:
– Warn potential intruders instantly with sound and light when abnormal events
Every Event is Under Your Control:
– VIGI camera intelligently detects activities, inform you instantly and response automatically by smart detection and two-way audio.
Never miss a detail. SmartVid-Smart Video Enhancement:
– Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
– Wide Dynamic Range: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
– 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality:
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. (Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.)
Flexible Management and Storage:
– Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with Micro-SD card slot (Micro-SD card not included in package).
Discover the best way to power your camera: PoE/12V DC.
– Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Installation:
– Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security. Run your business with peace of mind:
– The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. Notes:
1) Micro-SD card is not included in the package.
2) Camera supports up to 256GB Micros-SD card.
3) Only use Class 10 or higher Micro-SD card in the camera. Specifications:
NETWORK
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– API: ONVIF
– Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
GENERAL
– Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
– Certifications : CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
– Material: Plastic
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Power Supply:
a) 12V DC +/- 5%, 5.5mm Coaxial Power Plug
b) PoE (802.3af/at, class 0)
– Power Consumption:
a) 12V DC: Max 7.5W
b) PoE: Class 0
CAMERA
– Image Sensor: 1/3” Progressive Scan CMOS
– Lens: Fixed focal lens (4mm)
– Aperture (4mm): F1.6
– Lens Mount: M12
– Viewing Angle (4mm):
a) Horizontal FOV: 79 degree
b) Vertical FOV: 43 degree
c) Diagonal FOV: 93 degree
– Day/Night Mechanism: IR Cut Filter
– IR Working Distance: 30m
– Illumination Distance: 30m
– Minimum Illumination: 0 lux with IR/white Light
– Weatherproof Rating: IP66
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
VIDEO/IMAGE
– Video Compression:
1/ Main stream: H.265+/H.265/H.264+//H.264
2/ Sub-Stream: H.265/H.264
– Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 640×480, 352×288, 320×240
– Video Streaming: Main Stream, Sub-Stream
– Image Settings : Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
– Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
– Video Bit Rate:
1/ Main Stream: 256 Kbps to 4Mbps
2/ Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
– Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
– Basic Event: Motion Detection, Camera Tampering Detection, Exception ( illegal login)
– Linkage Method: Trigger Notification: ONVIF, HTTPS
– Region of Interest: 1 Region
INTERFACES
– Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
– Audio Input: Built-in Microphone
– Audio Output: Built-in Speaker
– Button: Reset Button
– Slot: Micro-SD card (Memory card not included) What’s in the box
1 x VIGI C340-4
1 x Waterproof Cable Attachments
1 x Mounting Accessories (Screws, Drywall Anchors, Hex Key)
1 x Quick Start Guide
