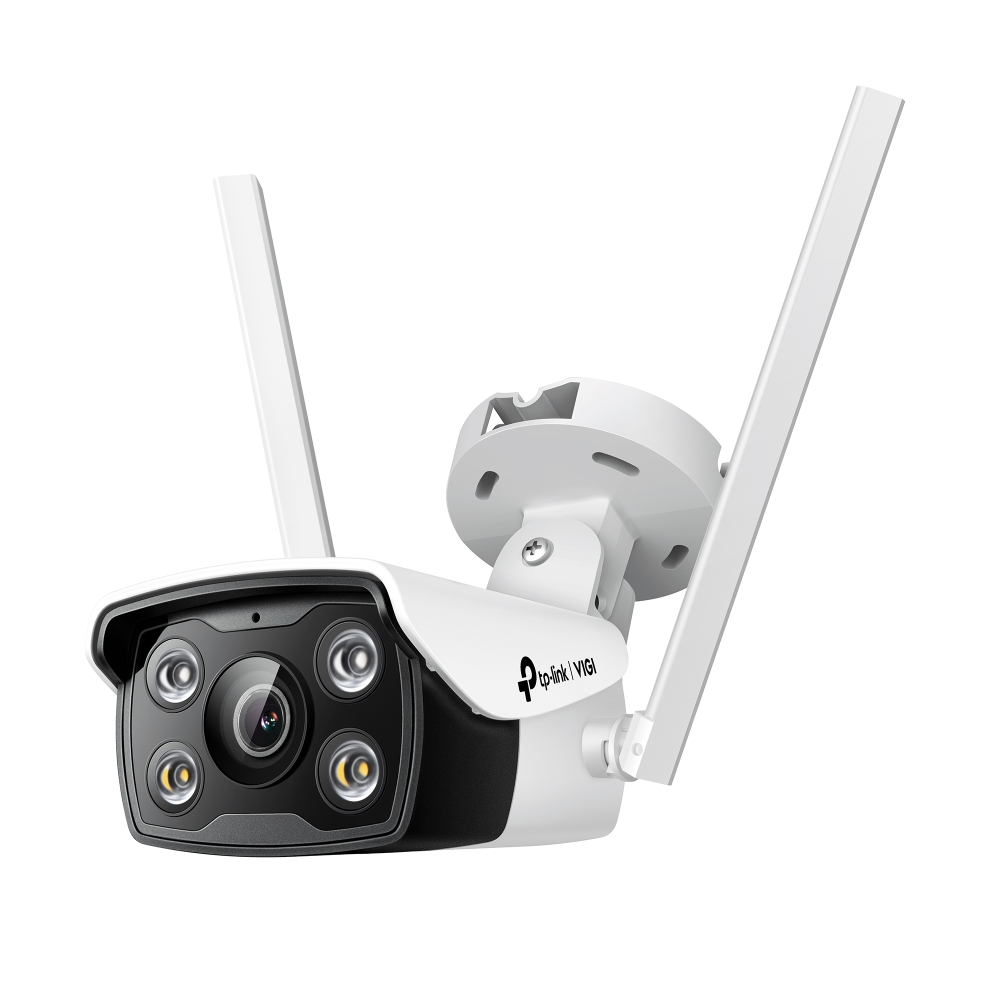

TP-Link VIGI C340-W-4 4MP Outdoor Full-Colour Wi-Fi Bullet Network Camera

C340-W-4
– 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
– 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
– Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
– Waterproof: Reliable IP66 for stable outdoor performance.
– Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone ...crosses a boundary, enters an area you’ve set, or obstructs the camera.
– H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– VIGI App: Manage your security from the palm of your hand with the VIGI app. All The Colours,
All The Time
4MP Outdoor Full-Colour Bullet Camera
VIGI C340-W-4 Features:
Outdoor Wi-Fi Connection, Simple Wiring:
– Just power up your camera, then the transmission starts by its 2 x 2 MIMO antennas. Waterproof hardware protection stable performance in outdoor scenarios.
Clarity and Colours, All in One:
– Monitor 24-hour clear and colourful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business. Smart Detection:
– Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
1) Motion Detection: Get instant notifications when your camera detects motion.
2) Area Intrusion: Set customized activity zones around key areas for more focused monitoring.
3) Line-Crossing: Set a boundary and receive an alert anytime a person crosses it from either or both directions.
4) Camera Tampering: Receive alerts when someone obstructs the camera.
Active Defense:
– Warn potential intruders instantly with sound and light when abnormal events.
Every Event is Under Your Control:
– VIGI camera intelligently detects activities, inform you instantly and response automatically by smart detection and two-way audio.
Never miss a detail. SmartVid-Smart Video Enhancement:
– Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
– Wide Dynamic Range: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
– 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality:
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
(Please note that calculations are based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.)
Flexible Management and Storage:
– Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB). (The Micro-SD card is not included in package).
Flexible Installation:
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security. Run your business with peace of mind:
– The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. Notes:
1) Micro-SD card is not included in the package.
2) Camera supports up to 256GB Micros-SD card.
3) Only use Class 10 or higher Micro-SD card in the camera. Specifications:
NETWORK
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– Wireless Rate: 11Mbps (802.11b), 54Mbps (802.11g), 150Mbps (802.11n)
– Frequency: 2.4GHz
– Wireless Security: WPA/WPA2-PSK
– API: ONVIF
– Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
GENERAL
– Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
– Certifications : CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug
– Power Consumption: 12V DC: Max 7W
CAMERA
– Image Sensor: 1/3” Progressive Scan CMOS
– Lens: Fixed focal lens (4 mm)
– Aperture (4 mm): F1.6
– Lens Mount: M12
– Viewing Angle (4mm):
a) Horizontal FOV: 79 degree
b) Vertical FOV: 43 degree
c) Diagonal FOV: 93 degree
– Day/Night Mechanism: IR Cut Filter
– IR Working Distance: 30m
– Illumination Distance: 30m
– Minimum Illumination: 0 lux with IR/white Light
– Weatherproof Rating: IP66
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
VIDEO/IMAGE
– Video Compression:
a) Main stream: H.265+/H.265/H.264+/H.264
b) Sub-Stream: H.265/H.264
– Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 640×480, 352×288, 320×240
– Video Streaming: Main Stream, Sub-Stream
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
– Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
– Video Bit Rate:
1) Main Stream: 256 Kbps to 4Mbps
2) Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
– Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
– Basic Event: Motion Detection, Camera Tampering Detection, Exception (illegal login)
– Linkage Method: Trigger Notification: ONVIF, HTTPS
– Region of Interest: 1 Region
INTERFACES
– Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
– Audio Input: Built-in Microphone
– Audio Output: Built-in Speaker
– Button: Reset Button
– On-board Storage: Built-In Memory Card Slot, Support Micro-SD Card up to 256GB (memory card is not included)
– Material: Plastic What’s in the box
1 x C340-W-4
1 x Power Adapter
1 x Waterproof Cable Attachments
1 x Mounting Accessories set
1 x Quick Start Guide
