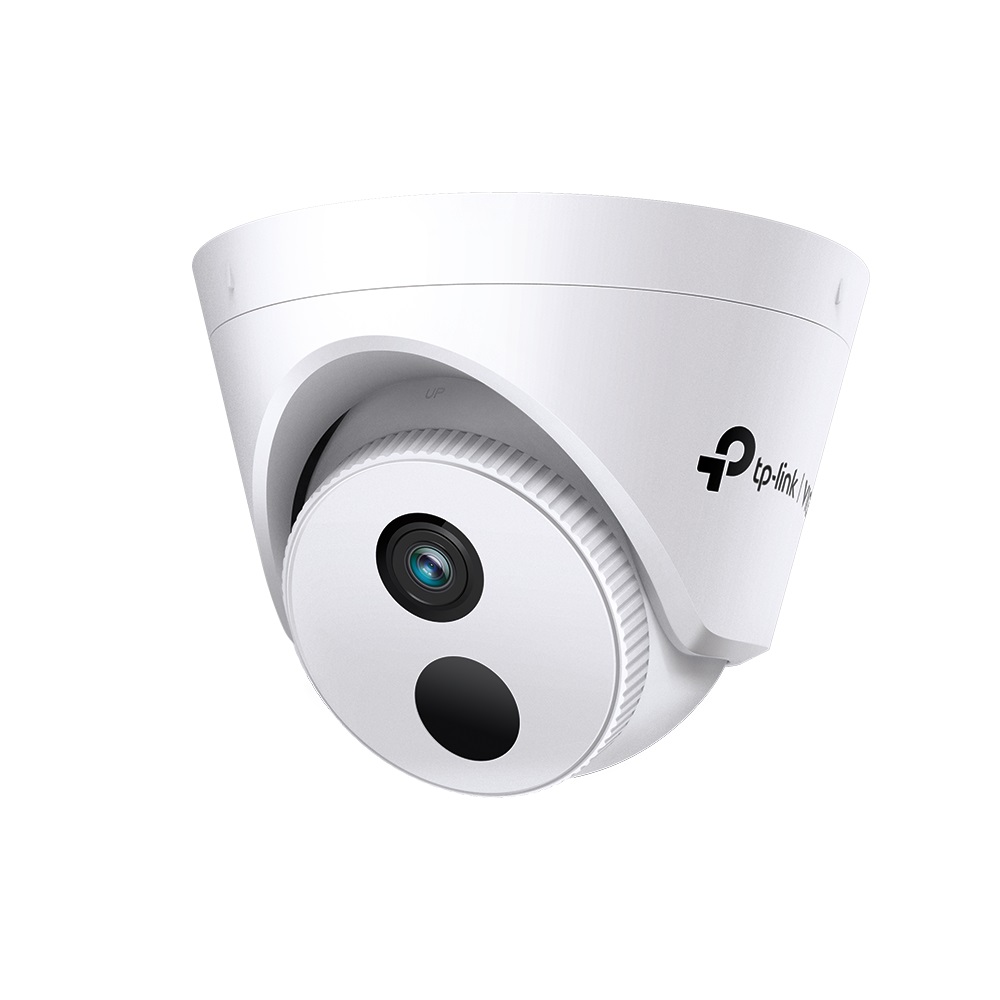

TP-Link VIGI C420I-2.8 2MP IR Turret Network Camera

C420I-2.8
– 2MP Full-High Definition: The VIGI C420I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
– Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
– Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
– H.265+: Without using any extra bandwidth, your ...cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
– Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
– Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
– 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C420I comes with two different lens types to better suit your security needs.
– Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager. Security Never Shuts Down
2MP IR Turret Network Camera
VIGI C420I-2.8 Features:
Looking for a higher resolution? It’s right here. 2MP Full-High Definition:
– The VIGI C420I camera comes with 2MP—more than enough pixels to pick up some of the more discrete details.
Human and Vehicle Classification:
– Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection:
– Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
a) Motion Detection
b) Intrusion Detection
c) Object Removal Detection
d) Line-Crossing
e) Camera Tampering
f) Object Abandoned Detection
Never miss a detail. SmartVid-Smart Video Enhancement:
– VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. (Please note that the calculations are based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.)
Corridor Mode:
– Corridor mode allows you to change the image aspect ratio from 16:9 to 9:16. This helps to monitor long and narrow areas and provides a more pleasant viewing experience.
Simplified Deployment with PoE:
– Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
Choose the right lens for your security: 2.8 or 4 mm Lens.
– Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C420I comes with two different lens versions to better suit your security needs.
Flexible Installation:
– Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
Flexible Management:
– Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manger.
One system. Full security. Run your business with peace of mind:
– The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. Specifications:
CAMERA
– Image Sensor: 1/3” Progressive Scan CMOS
– Lens: 2.8 mm
– Aperture (2.8 mm): F2.2
– Lens Mount: M12
– Viewing Angle (2.8 mm):
a) Horizontal: 88.2 degree
b) Vertical: 48.7 degree
c) Diagonal: 106.5 degree
– Day/Night Mechanism: IR Cut Filter
– IR Working Distance: 30m
– Minimum Illumination:
a) Color: 0.1 Lux
b) 0 Lux with IR
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
NETWORK
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– API: ONVIF
– Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
– Client: VIGI App, VIGI Security Manager, VIGI NVR
GENERAL
– Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
– Certifications : CE/BSMI/VCCI/ONVIF
– Material: Plastic
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Power Supply: PoE (802.3af/at, class 0)
– Power Consumption: PoE: Class 0
VIDEO/IMAGE
– Video Compression:
1/ Main Stream: H.265+/H.265/H.264+/H.264
2/ Sub-Stream: H.265/H.264
– Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 1920×1080, 1280×960, 1280×720
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 704×576, 640×480, 352×288, 320×240
– Max. Resolution: 2MP (1920 × 1080)
– Video Streaming: Main Stream, Sub-Stream
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90 degree/270 degree)
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Video Bit Rate: 64Kbps to 4Mbps
– Day/Night Switch: Day/Night/Auto/Schedule
SMART FEATURE-SET
– Smart Event: Human and Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
– Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
– Linkage Method: Trigger Notification: ONVIF, HTTPS
– Region of Interest: 1 Region
INTERFACES
– Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
– Button: –
– Video Output: – What’s in the box
1 x VIGI C420I-2.8 camera
1 x Mounting Accessories set
1 x Waterproof Cable Attachments
1 x Quick Start Guide
