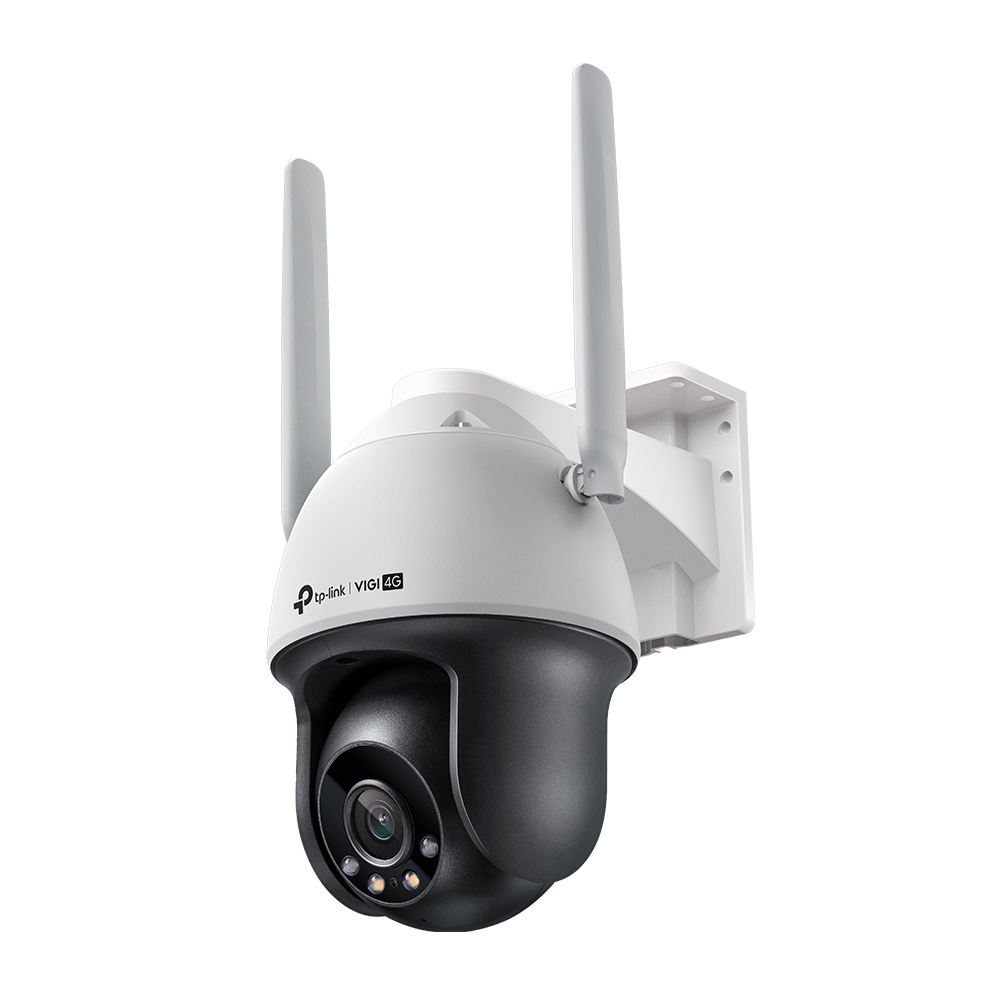

TP-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera

• 4MP Super-High Definition: The camera comes with 4MP-more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
• 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
• 360 degree Monitoring: Cover every corner and eliminate blind spots.
• Human and Vehicle Classification: Distinguishes humans and vehicles from other objects, so you ...receive more accurate event notifications.
• Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
• Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
• H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• IP66 Waterproof: Reliable IP66 for stable outdoor performance.
• Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
• Onboard Storage: Support on-board storage up to 512 GB (Micro-SD card slot) (Memory not included). (2)

Secure Everywhere with a 4G Network
4MP Outdoor Full-Color
4G Pan Tilt Network Camera
TP-Link VIGI C540-4G Features:
Clarity and Colors, All in One:
– Experience clear, vibrant 24-hour monitoring, even in total darkness, with the VIGI Full-Color camera. Its 4MP resolution, large-aperture lens, high-sensitivity sensor, and supplemental lights deliver comprehensive, colorful surveillance.
Network Anywhere You Need It:
– No need to connect network cables. Just insert a Nano-SIM card, then your camera is ready to connect to a 4G LTE network. Enjoy hassle-free installation and simple monitoring in places where the internet is not available, such as farms, forests, and construction sites.
Powerful Pan/Tilt:
– Cover every corner flexibly with VIGI’s Pan/Tilt camera. Customized patrol routes provide more intelligent and quick options to monitor key areas (up to 8 points for each route), reducing manual costs for adjusting pan and tilt angles repeatedly. (360 degree monitoring, 300 presets, 8 patrol routes, 44 degree/s Preset Tilt Speed, 44 degree/s Preset Pan Speed)
Human and Vehicle Classification:
– Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking:
– Automatically tracks persons or vehicles of interest and provides seamless and longer video. This way, you will better understand what’s happening and take action without wasting time on irrelevant footage.
Smart Detection for Efficient Monitoring:
– By setting the detection rules in advance, TP-Link VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.
1) Intrusion Detection: Set customized activity zones around key areas for more focused monitoring.
2) Line-Crossing Detection: Set a boundary and receive an alert anytime a person crosses it from either or both directions.
3) Region Entering Detection: Flexibly set customized protected regions and receive alerts anytime a person enters the regions.
4) Region Exiting Detection: Freely set customized focused regions based on your special business monitoring needs like staff departure monitoring. You will receive instant notifications once TP-Link VIGI cameras detect someone leaving a region.
5) Abandoned Object Detection: Accurately detects abandoned objects in key areas and instantly notifies you to deal with them.
6) Object Removal Detection: Informs you as soon as someone removes an object, so you can avoid property damage in time.
Active Defense:
– Warn potential intruders off instantly with sound and light to pro-actively protect your property, even while away from the scene.
Two-Way Audio:
– With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Smart Video Coding by H.265+:
– Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. (3)
IP66 Weatherproof:
– Reliable IP66 enables stable outdoor performance.
Flexible Storage:
– Local storage is available for each method, and a Micro-SD card slot (up to 512GB – memory not included) offers onboard storage. (2)
Remote Management:
– Take full control over your security anytime and anywhere on the VIGI app or client.
1) Live Views and Real-Time Alerts: Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.
2) Easy and Smart Playback: Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.
3) Customized Monitoring Patterns: Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in and out, customize patrol routes, control patrol routes, and more.
4) Four-Way Management: Easily control your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager. The VIGI app and VIGI Security Manager also allow for remote management.
One system. Full security: Run your business with peace of mind.
– The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build – whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound. Notes:
1/ Picture for reference only.
2/ Micro-SD card is not included in the package.
3/ Calculations based on laboratory testing using VIGI cameras. Actual performance may vary according to the amount of activity recorded, resolution, and other variables.
4/ TP-Link VIGI C540-4G cannot resist water when it is placed upside down. PLEASE USE IT IN THE RIGHT WAY! Specifications:
CAMERA
– Image Sensor: 1/3.06″ Progressive Scan CMOS
– Shutter Speed: 1/3 to 1/10000s
– Slow Shutter: Yes
– Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
– Day/Night Mechanism: IR Cut Filter
– Day/Night Switch: Unified/ Scheduled/ Auto
LENS
– Type: Fixed Focal Lens
– Focal Length: 4mm
– Aperture: F1.6
– FOV: Horizontal FOV: 80 degree, Vertical FOV: 43 degree, Diagonal FOV: 94 degree
– Lens Mount: M12x0.5
– DORI Distance: a) Detect: 80m (262ft), b) Observe: 33m (109ft), c) Recognize: 16m (52ft)
d) Identify: 8m (26ft)
PTZ
– Pan/tilt Range: Pan: 0 degree to 348 degree, Tilt: 0 degree to 120 degree
– Pan/tilt Speed:
1) Pan Speed: Configurable from 8 degree to 44 degree /s; Preset Speed: 44 degree /s
2) Tilt Speed: Configurable from 8 degree to 44 degree /s, Preset Speed 44 degree /s
– Manual Control Speed: Configurable from 8 degree to 35 degree /s
– Presets: 300
– Patrol Scan: 8 patrols, up to 8 presets for each patrol
– Power-off Memory: Yes; Auto restore to previous PT and lens status after power failure
– Park Action: Yes; Preset; Patrol Scan
– 3D Positioning: Yes
ANGLE ADJUSTMENT (MANUAL)
– Range: Pan: 0 degree to 348 degree; Tilt: 0 degree to 120 degree
ILLUMINATOR
– IR LED: a) Quantity: 2 ; b) Range: 30m ; c) Wavelength: 850nm
– White LED: Quantity: 2 ; Range: 30m
– Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
VIDEO
– Max. Resolution: 2560 x 1440
– Main Stream:
1) Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps ; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
2) Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Note: If the image rotation is set to 90 degree or 270 degree, the frame rate only supports up to 20fps.
– Sub-Stream:
a) Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps ; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 640×480, 352×288, 320×240
Note: If the image rotation is set to 90 degree or 270 degree, the frame rate only supports up to 20fps.
– Bit Rate Control: CBR, VBR
– Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 ; Sub-Stream: H.265/H.264
– H.264 Type: Main Profile/High Profile
– H.264+: Main Stream Supported
– H.265 Type: Main Profile
– H.265+: Main Stream Supported
– Video Bit Rate: a) Main Stream: 256Kbps to 3Mbps ; b) Sub-Stream: 64Kbps to 512Kbps
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90 degree /270 degree)
– Image Enhancement : BLC/3D DNR/HLC/SmartIR
– Wide Dynamic Range: DWDR
– SNR: >/= 52dB
– Image Parameters Switch: Yes
– Privacy Mask: Up to 4 Masks
– ROI: 1 Region
– OSD Setting: Yes
AUDIO
– Audio Communication: Two-Way Audio
– Audio Input and Output: Yes
– Audio Compression: Yes
– Audio Sampling Rate: 8KHz
– Environment Noise Filtering: Yes
– Audio Bit Rate: 64Kbps (G.711 alaw)
NETWORK
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– ONVIF: Yes
– API: ONVIF
– Simultaneous Live View: 2 Main Streams and 2 Sub-Streams
– Client: VIGI App, VIGI Security Manager, Web UI
– Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
– Cloud: Yes
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G
– Standard: LTE-TDD/LTE-FDD/WCDMA
– SIM Type: Nano SIM
– Category: 4
– Frequency:
1/ LTE-FDD: B 1/3/5/7/8/20/28
2/ LTE-TDD: B 38/40/41
3/ WCDMA: B 1/5/8
ALARM AND EVENT MANAGEMENT
– Smart Event: Human and Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, People Detection, Vehicle Detection
– Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
– Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
– Linkage Method: N/A
– Output Notification: Message Push
INTERFACES
– Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
– Alarm: N/A
– Reset Button: Yes
– Power: DC Power Port
– On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB (2)
– Built-in Nano-SIM Card Slot: Yes
– Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
– Built-in Speaker: Yes
– Audio: N/A
– Protection: IP66
– Antenna:
a) Quantity: 2
b) Type:
i) 690-960 and 1710-2690MHz Dipole Omni-Directional Antenna
ii) Gain: Ant1:0.84dBi@690-960MHz, 2.85dBi@1710-2690MHz ; Ant2:0.74dBi@690-960MHz, 3.06dBi@1710-2690MHz
– Dimensions (L x W x H): 12 x 18,2 x 20,1cm (excluding antennas)
GENERAL
– Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
– Storage Temperature: -40 Degree Celsius – 60 Degree Celsius
– Operating Humidity: 95% or Less (Non-Condensing)
– Storage Humidity: 95% or Less (Non-Condensing)
– Certifications: CE, RCM, BSMI, RoHS, NCC What’s in the box
1 x TP-Link C540-4G VIGI Network Camera
1 x Power Adapter (12V DC/1A, 5.5mm Coaxial Power Plug)
2 x Antenna
1 x Waterproof Cable Attachments
1 x Mounting Accessories
1 x Quick Start Guide
