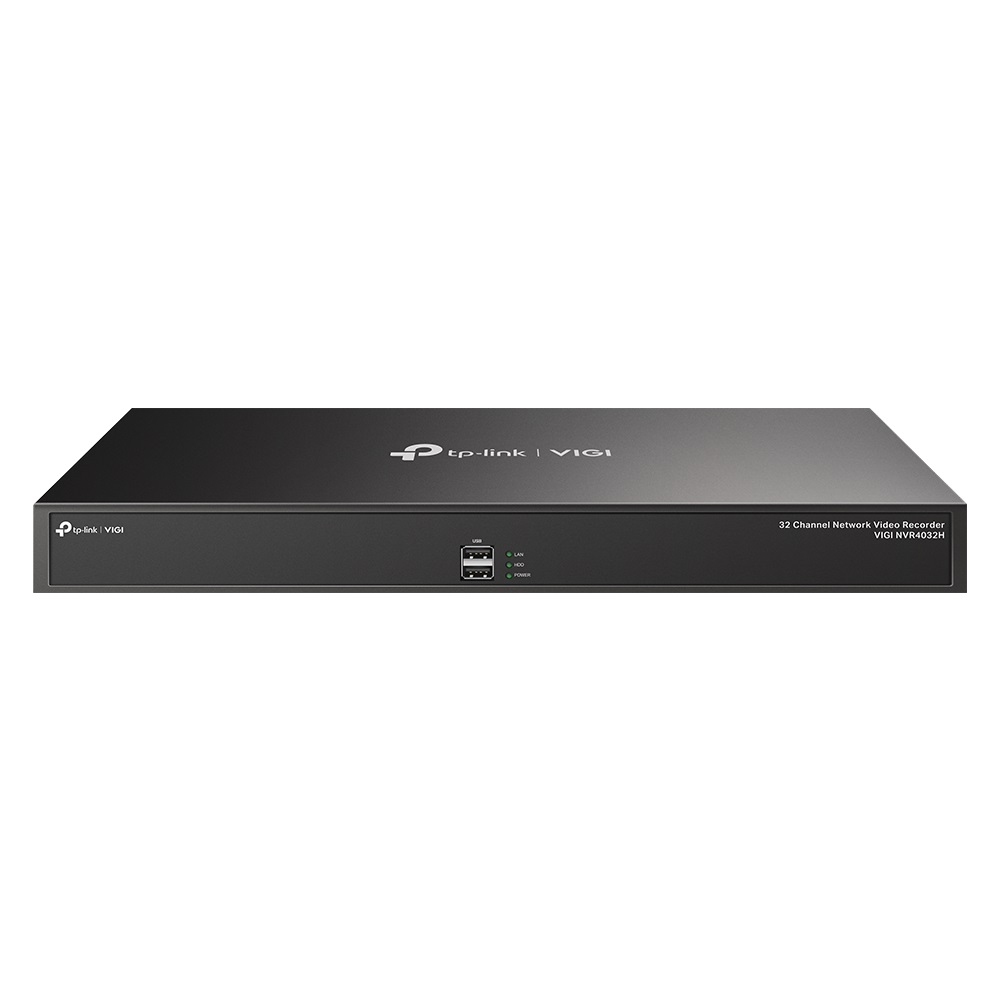

TP-Link VIGI NVR4032H 32-Channel Network Video Recorder

NVR4032H
– Face Recognition: Enhances access management and maximizes security.
– Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
– H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
– 320Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
– Mass Storage: Supports 4 x SATA, up to 10TB each. (2)
– 16...-ch@2MP/ 8-ch@4MP Decoding Capacity (1): Allows you to enjoy more channels, live view, and playback at the same time.
– 1 HDMI and 1 VGA Interface: Supports independent video output.
– 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
– Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
– Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
– Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
– ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. Security Never Shuts Down.
VIGI 32 Channel Network Video Recorder
VIGI NVR4032H Notes:
1/ Calculations based on laboratory testing using VIGI cameras.
2/ HDDs are not included. Specifications
NETWORK
– Incoming Bandwith: 320Mbps
– Outgoing Bandwidth: 320Mbps
NETWORK MANAGEMENT
– Network Protocols: UPnP (Plug and Play), NTP (Network Timing)
– Interoperability: ONVIF, CGI
– Mobile Phone Access: Android, iOS
– Browser: Chrome (57+), Firefox (52+), Edge (91+)
GENERAL
– Working Temperature: -10 – 55 C
– Working Humidity: 10% ~ 90% RH Non-Condensing
– Power Supply: 100 – 240VAC, 50 to 60HZ, 1.5A
– Power Consumption:
a) 5W (Without Disk)
b) 48W (With Disk)
RECORD PLAYBACK
-Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
– Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
– Backup Mode: Regular Backup, Video Clip Backup
– Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
EXTERNAL INTERFACE
– Network Interface: 2 x RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface
– USB Interface: USB Interface
– Audio Interface: 1 x Audio In; 1 x Audio Out
– Alarm In/Out: 16/4
– Serial Interface: 1 x RS232
ALARM
– General Alarm: Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection Anomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
– Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm
VIDEO/IMAGE
– IP Video Input: 32-Channel
– Multi-View Display: 1/4/6/8/9/16/25/32/36
– Video Output Mode: HDMI/VGA Independent Output
– Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
– HDMI Output Resolution:
a) 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
– VGA Output Resolution:
a) 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
DECODING
– Decoding Format: H.265+/H.265/ H.264+/H.264
– Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
– Synchronous Playback: 16-Channel
– Capability: 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps)
HARD DISK
– SATA: 4 x SATA Interfaces
– Capacity: Up to 10TB Capacity for Each HDD What’s in the box
1 x NVR4032H VIGI Network Video Recorder
1 x Power Adapter
1 x HDDs Screws set
1 x Quick Installation Guide
