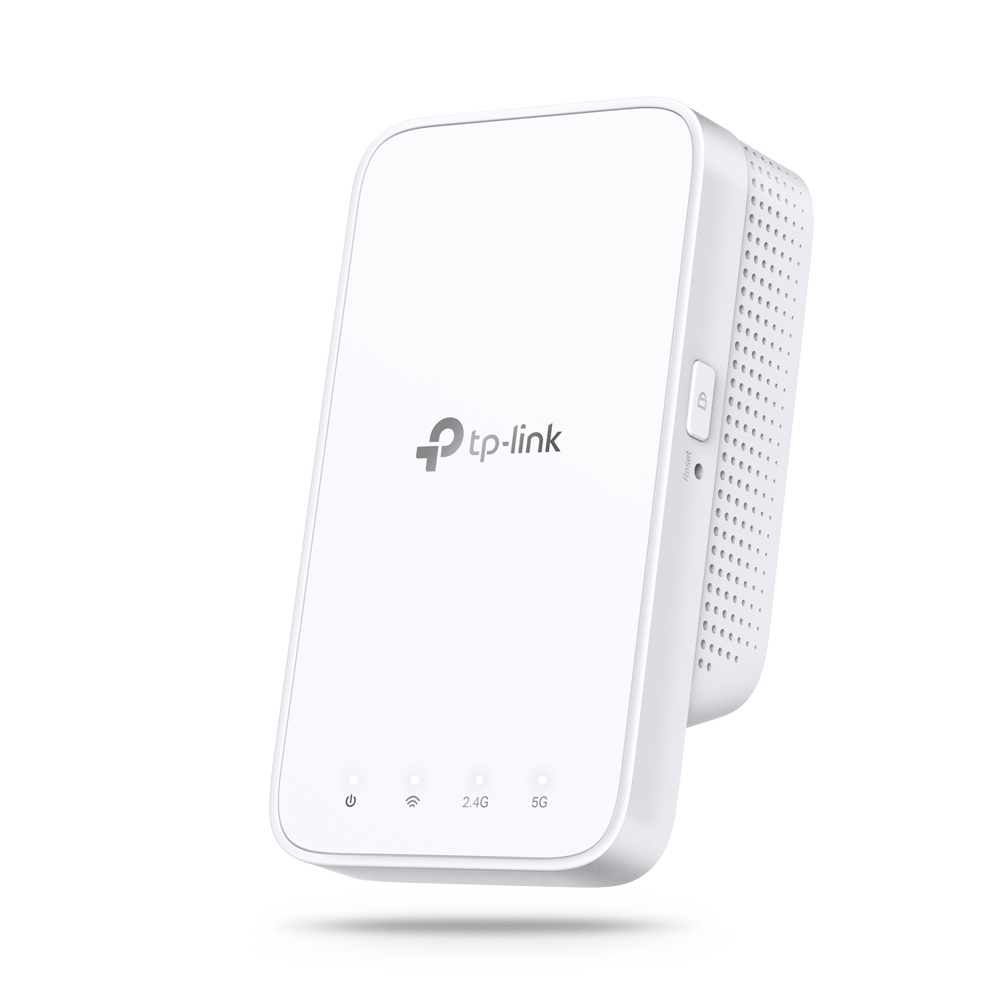

AC1200 Mesh Wi-Fi Range Extender
RE300
Extends dual-band Wi-Fi across your home to eliminate Wi-Fi dead zones.
Creates a Mesh network by connecting to a OneMesh router for seamless whole-home coverage.
Operates over both the 2.4 GHz band (300 Mbps) and 5 GHz band (867 Mbps) for more stable wireless experience.
Smart signal indicator helps to find the best location for optimal Wi-Fi coverage by showing the signal strength.
Push the WPS button to easily set up a Mesh network you can uniformly manage from the Tether app or Web UI.
Works with any Wi-Fi router or wireless access point.
Extend Dual-Band Wi-Fi across Your Home
AC1200 Mesh Wi-Fi Range Extender
RE300
Why Do You Need OneMesh Range Extender?
Can’t get Wi-Fi in your bedroom? – Add a Wi-Fi Range Extender
Lose connection while walking around the house? – OneMesh with Smart Roaming
Network buffering all the time? – AC1200 Dual-Band Speed
Network setup too complicated? – Easy Setup with Only Two Steps
Keep the Whole Home Connected
RE300 wirelessly connects to your Wi-Fi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, but strong, fast Wi-Fi in every room and say goodbye to dead zones.
TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.
Smart Roaming – Uninterrupted streaming when moving around your home.
One Wi-Fi Name No more switching Wi-Fi network names
Easy Creation OneMesh Router + OneMesh Range Extender
Unified Management Manage the whole unified network all in one Tether app
Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh resolves your dilemma.
1. Update your existing TP-Link router’s firmware to OneMesh version—no need to replace it. 2. Connect the RE300 to the router. 3. Enjoy the Mesh network.
High-Speed Dual Band Wi-Fi without Bandwidth Drop
Faster AC1200 Dual Band Wi-Fi – The RE300 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 867 Mbps dual bands.
Keeps Itself Fast – Adaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High-Speed Mode – Use both Wi-Fi bands to establish one super-high-speed connection, ideal for HD streaming & gaming.
Secure One-Touch Connection for Easy Setup
Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE300 to connect to the network.
Step 2: Once connected, place RE300 to the best location—without reconfiguration.
Find the Best Location with the Smart Signal Indicator
The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your Wi-Fi.
Feature-Rich App for Control in Your Hands
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
Specifications
Hardware Features
Plug Type: EU, UK, US, AU
Standards and Protocols : IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b
Button: WPS Button, Reset Button
Power Consumption: 7.3W?max power consumption?
Dimensions ( W x D x H ) : 4.9 x 2.7 x 2.0 in (124 x 69 x 52 mm)
Wireless Features
Frequency : 2.4GHz & 5GHz(11ac)
Signal Rate :
5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps
Reception Sensitivity :
5GHz?
11a 6Mbps:-91dBm@10% PER
11a 54Mbps: -74dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -63dBm@10% PER
11ac HT80 mcs9: -59dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER
Wireless Functions:
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function
Wireless Security:
64/128-bit WEP
WPA-PSK / WPA2-PSK
Transmission Power:
<17dBm(2.4GHz)
<17dBm(5GHz)
Others
Certification : CE, FCC, RoHS
Enviroment :
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
What’s in the box
AC1200 OneMesh Wi-Fi Range Extender RE300
Quick Installation Guide
| Weight | 1 kg |
|---|---|
| Dimensions | 1 × 1 × 1 cm |
| Brand | TP-Link |
| Model | NET-RE300 |
|---|
