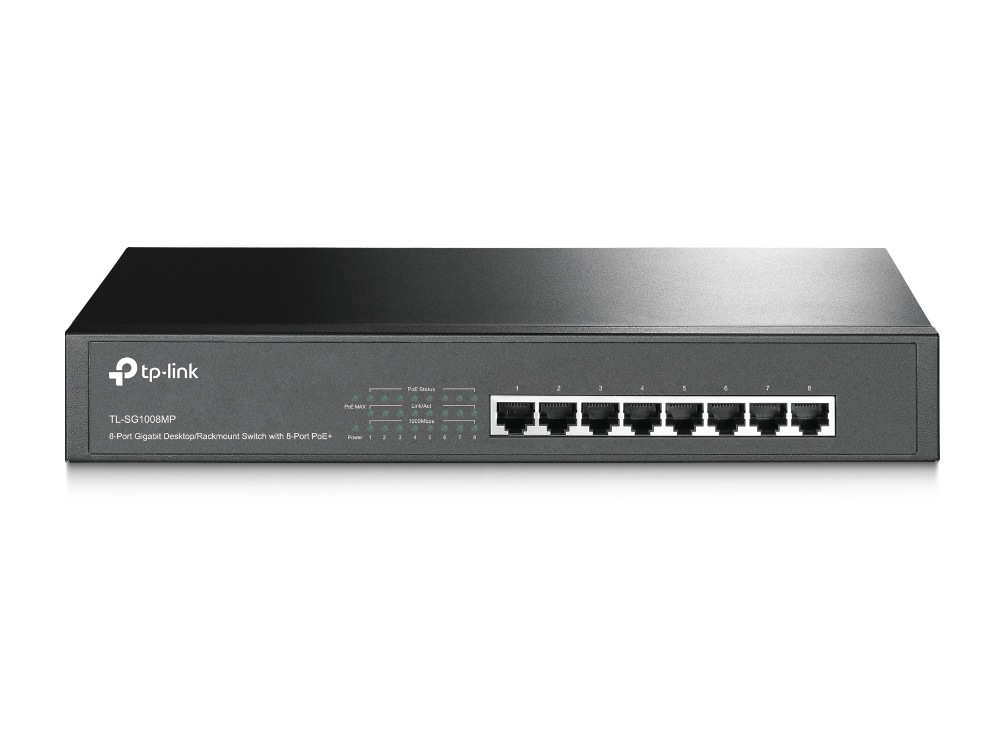

Tplink Sg1008Mp 8 Port Gigabit Poe+ Switch 126W Poe Power 1U 1 Rack Mount

Features:
– 8 10/100/1000Mbps RJ45 ports
– Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
– Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
– Innovative energy-efficient technology reduces power consumption
– Rack mountable with included rack mount bracket
– Total PoE power budget up to 126W
– Plug and play design, no configuration required What This Product Does:
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with ...all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network. How This Product Works:
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones. Prioritized Power Supply:
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use. Easy To Use:
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network. Specifications:
Hardware
– Interface : 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

• Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
  1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  EIA/TIA-568 100? STP (maximum 100m)
• Fan Quantity: 1
• Power Supply: 100-240VAC, 50/60Hz
• PoE+ Ports(RJ45): Standard: 802.3at/af (30W)
  PoE+ Ports: 8 Ports
  Total PoE Budget: 126W
• Backbound Bandwidth : 16Gbps
• Mac Address Table : 4K
• Buffer Size : 1.5Mbits
• Dimensions ( W x D x H ) : 11.6 × 7.1 × 1.7 in.
  (294 × 180 × 44 mm)
• Mounting : 13″ and 19″ 1U rack mountable
• Max Power Consumption : 9.9W(no PD load)
  144.4W(with 124W PD load)
• Max Heat Dissipation : 33.7BTU/h(no PD load)
  492.6BTU/h(with 124W PD load)

Software
– Advanced Features: Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
– Transfer Method: Store-And-Forward Others:
– Certification : FCC, RoHS
– Consumption : 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
– Environment: Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing What’s in the box
1 x TL-SG1008MP
1 x Power Cord
1 x Installation Guide
1 x Rackmount Kit
1 x Rubber Feet
