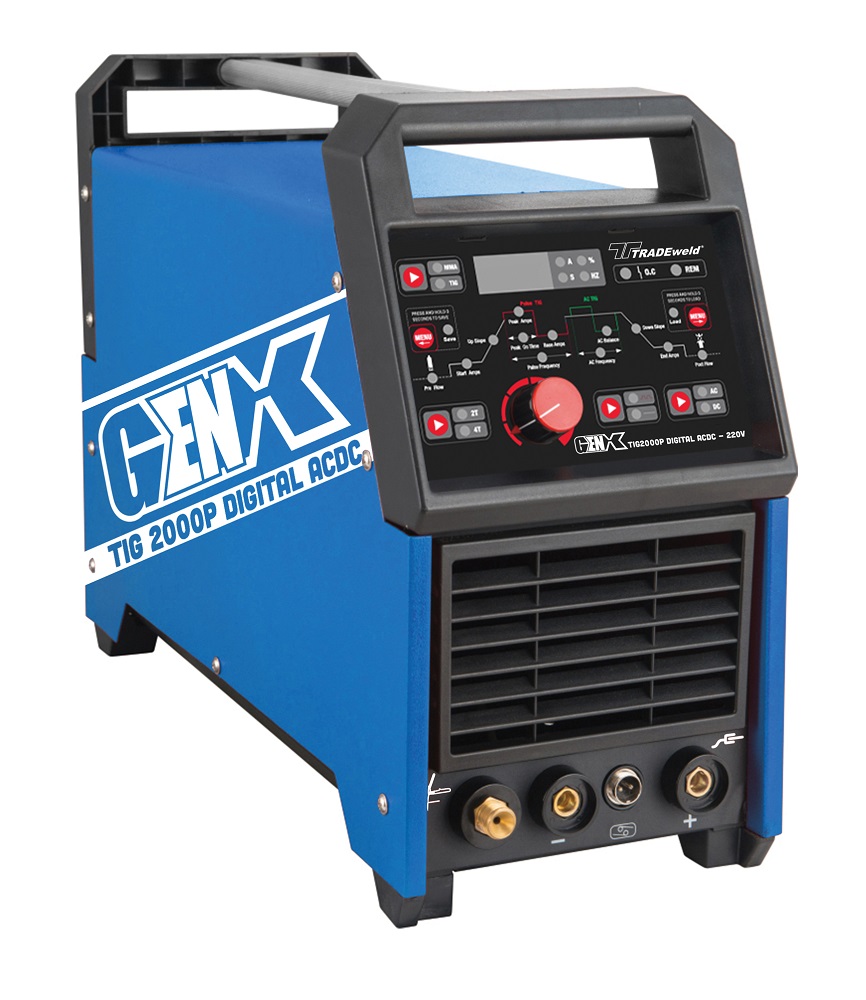

Tradeweld – 2000P DIGITAL ACDC-TIG Inverter Welding Machine

Features:
– Digital Display
– 32 Bit High Speed MCU Control (Store Welding Parameters)
– TIG Pulse Mode
– 4T / 2T Function
– With Pre Flow
– Arc Start Current
– Up Slope
– Peak Current – Base Current
– Arc End Current
– Downslope
– Pulse Frequency
– Pulse Ratio
– Post Flow
– Clearance Width – AC Frequency
– Foot Pedal Control
– MMA Mode with VRD Control
– Over Current and Overheating Protection
– Industrial use Output
– Process – TIG / ...MMA
– Electrode size – 16 – 40MM
– Max steel thickness – 6MM
– Amps: TIG / MMA -5-200 – 20-180
– Volts: TIG / MMA -18 -272
– Duty Cycle – 60% at 200A
– OCV -56 Input
– Volts – 220V at 15% 50/60HZ
– Amps: TIG / MMA -205 -278
– General
– Cooling – Fan
– IP -23
– Dimensions (MM) -L-475 X W-200 X H-410 What’s in the box
Welding Cable Set, TIG WP17 Torch & Foot Remote Pedal
