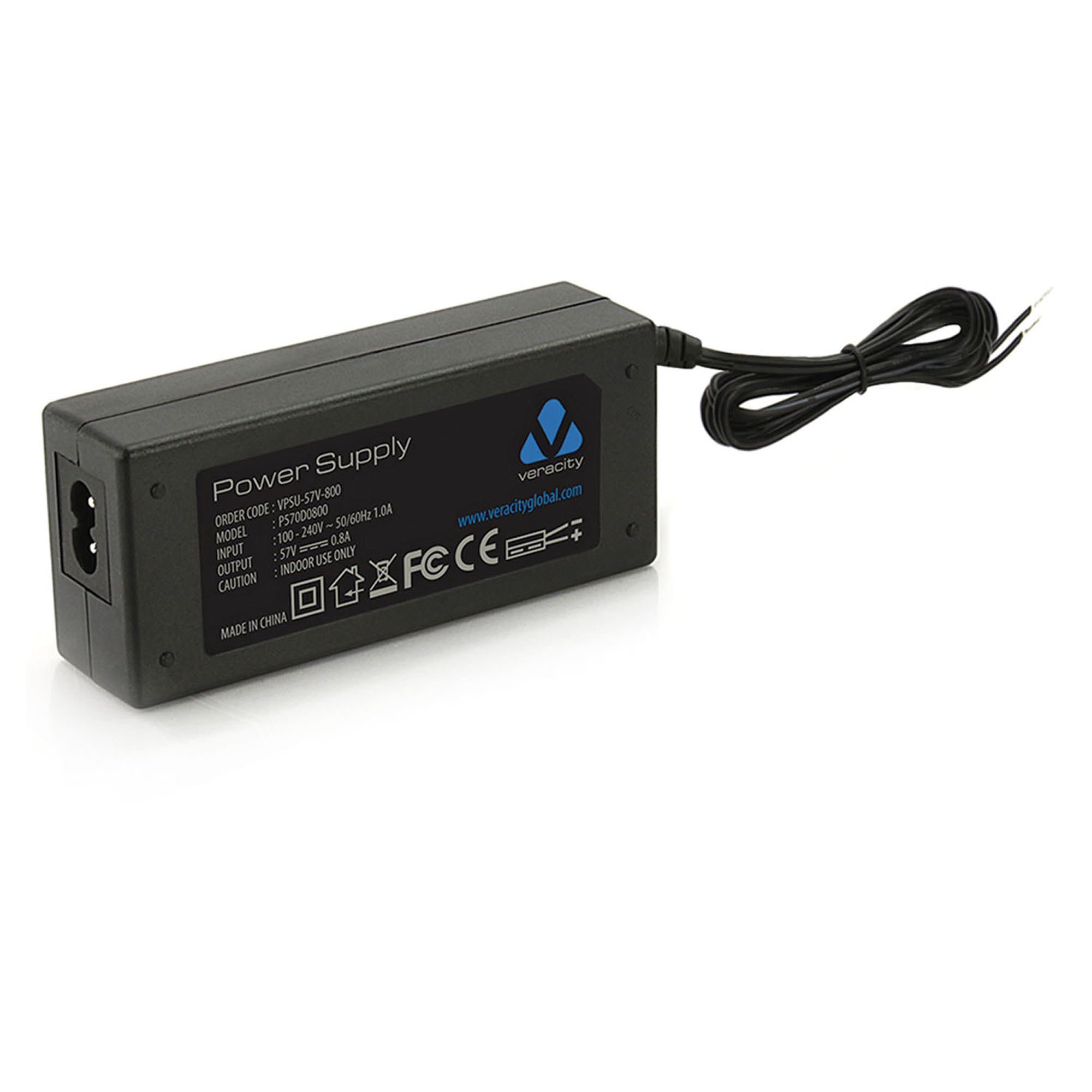

Veracity Optional 57V PSU 0.8A For PoE+

Power Input:
– Normal Input Voltage: 100 – 240V AC
– Input Voltage/Frequency (rated): 90 – 264V AC 50/60Hz
– Current (rated): 1.0A at full load and any input voltage Power Output:
– Normal Output Voltage: 57V DC (+/- 3.0V)
– Maximum Output Current: 0.8A
– Output Short Circuit Protection: Can be shorted without damage and auto recovery
– Efficiency: 80%, Level VI Physical/Environmental:
– Operating Temperature:  0degree – +40degree C, [32degree F- +104degree F], Full Load and natural convection
– Storage Temperature: -10...degree – +70degree C, [14degree F- +158degree F],
– Operating/Storage Humidity: 10 – 90% RH (non-cond) / 5 – 90% RH (non-cond)
– Compliance: EN60950, EN55022B, CE, ROHS, FCC, UL, KCC, PSE
– Input Connector: 2 Pin IEC320, C8 Type (accepts C7 Type “figure of 8” power cord)
– Output Cable: 1.0m, stripped and tinned Associated Products:
– Highwire Powerstar (POE over coax, BASE unit)
– Highwire Powerstar Duo/Quad (POE over coax, Cam unit) integrated 2/4 port switch
– Highwire Powerstar Base 4 (POE over coax, BASE unit) 4 port switch
– Highwire Longstar (long-range POE over coax, BASE unit)
– LONGSPAN Base Unit (long-range POE, powered via POE-in or VPSU-57V)
– Camswitch 4 or 8 Plus (POE in or VPSU-57V)
– 1U PSU Tray
– 2- PIN C7 Power Cord with UK connector, (2 metre cord)
– 2- PIN C7 Power Cord with US connector, (2 metre cord)
– 2- PIN C7 Power Cord with EU connector, (2 metre cord) What’s in the box
1x Veracity Optional 57V PSU 0.8A For PoE+
