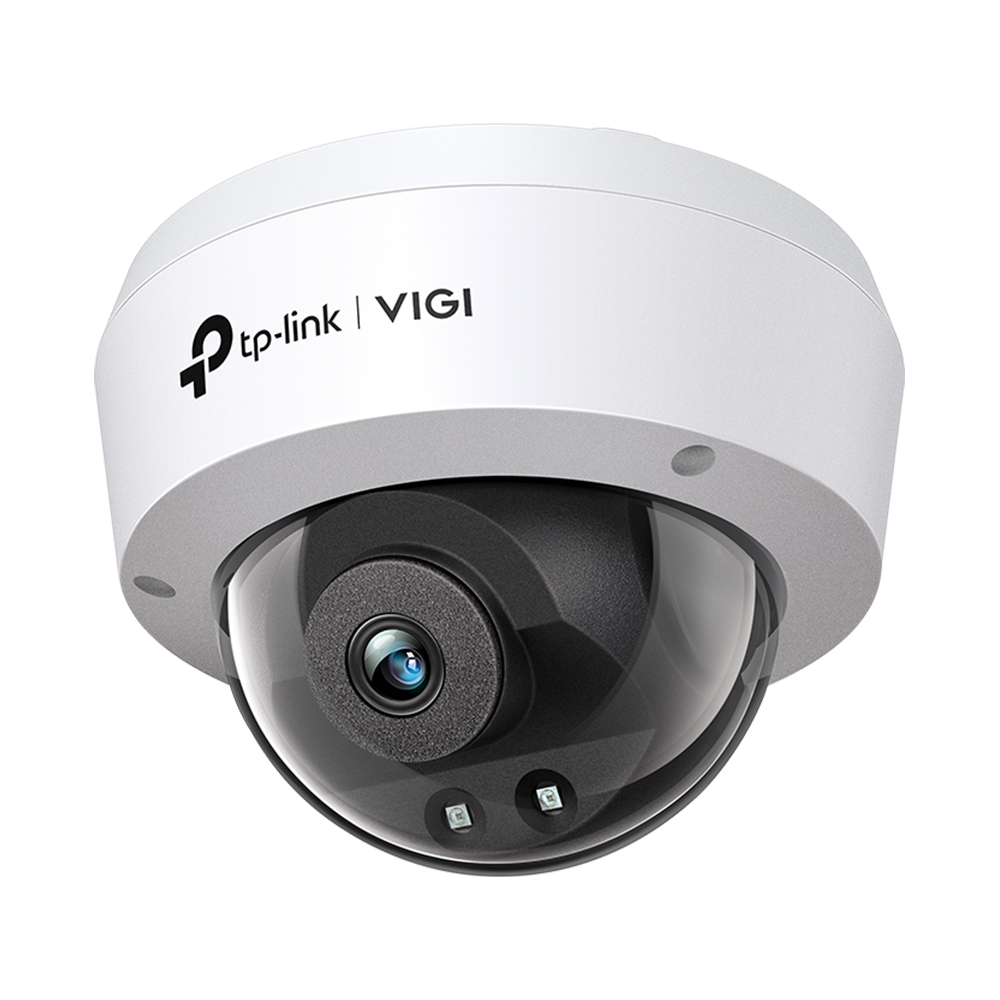

Vigi C240I 4MP 2.8mm Dome Network Camera

4MP Super-High Definition: The VIGI C240I camera comes with 4MP – more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and ...waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Specifications: Sure, here’s the list without bold formatting and indents: CAMERA
– Image Sensor: 1/3″ Progressive Scan CMOS
– Shutter Speed: 1/3 to 1/10000 s
– Slow Shutter: Yes
– Aperture: F2.2
– Lens: 2.8 mm
– Lens Mount: M12
– Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
– Day/Night Mechanism: IR Cut Filter
– Day/Night Switch: Unified/ Scheduled/ Auto
– Digital Noise Reduction: 3D DNR
– WDR: DWDR
– Weatherproof Rating: IP67
– IR Working Distance: 30m
– Viewing Angle: 2.8mm: 88.8 /48.9 /106.5 (H/V/D) LENS
– Type: Fixed Focal Lens
– Focal Length: 2.8 mm
– FOV: Horizontal FOV: 88.8 , Vertical FOV: 48.9 , Diagonal FOV: 106.5
– Lens Mount: M12
– DORI Distance:
– Detect: 60 m (197 ft)
– Observe: 25 m (82 ft)
– Recognize: 12 m (39 ft)
– Identify: 6 m (20 ft) ANGLE ADJUSTMENT (MANUAL)
– Range: Pan: 0 to 355 , Tilt: 0 to 75 ILLUMINATOR
– IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
– Illuminator On/Off Control: Auto/Scheduled/Always on/Always off VIDEO
– Max. Resolution: 2560 × 1440
– Main Stream Frame Rate:
– 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
– 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Sub-Stream Frame Rate:
– 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
– 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
– Bit Rate Control: CBR, VBR
– Video Compression:
– Main Stream: H.265+/H.265/H.264+/H.264
– Sub-Stream: H.265/H.264
– H.264 Type: Main Profile/High Profile
– H.264+: Main Stream Supported
– H.265 Type: Main Profile
– H.265+: Main Stream Supported
– Video Bit Rate:
– Main Stream: 256 Kbps to 4 Mbps
– Sub-Stream: 64 Kbps to 512 Kbps IMAGE
– Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90 /270 )
– Image Enhancement: BLC/3D DNR/HLC/SmartIR
– Wide Dynamic Range: DWDR
– SNR: 52 dB
– Image Parameters Switch: Yes
– Privacy Mask: Up to 4 Masks
– ROI: 1 Region
– OSD Setting: Yes AUDIO
– Audio Communication: N/A
– Audio Input: N/A
– Audio Output: N/A
– Audio Compression: N/A
– Audio Sampling Rate: N/A
– Environment Noise Filtering: N/A
– Audio Bit Rate: N/A NETWORK
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– ONVIF: Yes
– API: ONVIF
– Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
– Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
– Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
– Cloud: Yes
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication ALARM AND EVENT MANAGEMENT
– Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
– Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
– Alarm Linkage: Message Push
– Output Notification: Message Push INTERFACES
– Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
– Power: DC Power Port GENERAL
– Operating Temperature: -30-60 C
– Storage Temperature: -40-60 C
– Operating Humidity: 95% or Less (Non-Condensing)
– Storage Humidity: 95% or Less (Non-Condensing)
– Dimensions: 115 × 115 × 86 mm
– Material: Plastic
– General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
– Net Weight: 0.27 Kg
– Gross Weight: 0.45 Kg
– Power Consumption: 12V DC: Max 5W, PoE: Class 0
– Power Supply: 12V DC 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
– Vandal Resistant: IK10
– Protection: IP67, IK10
– Product Dimensions: 115× 86× 115 mm
– Certifications: CE/BSMI/VCCI/ONVIF What’s in the box
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
