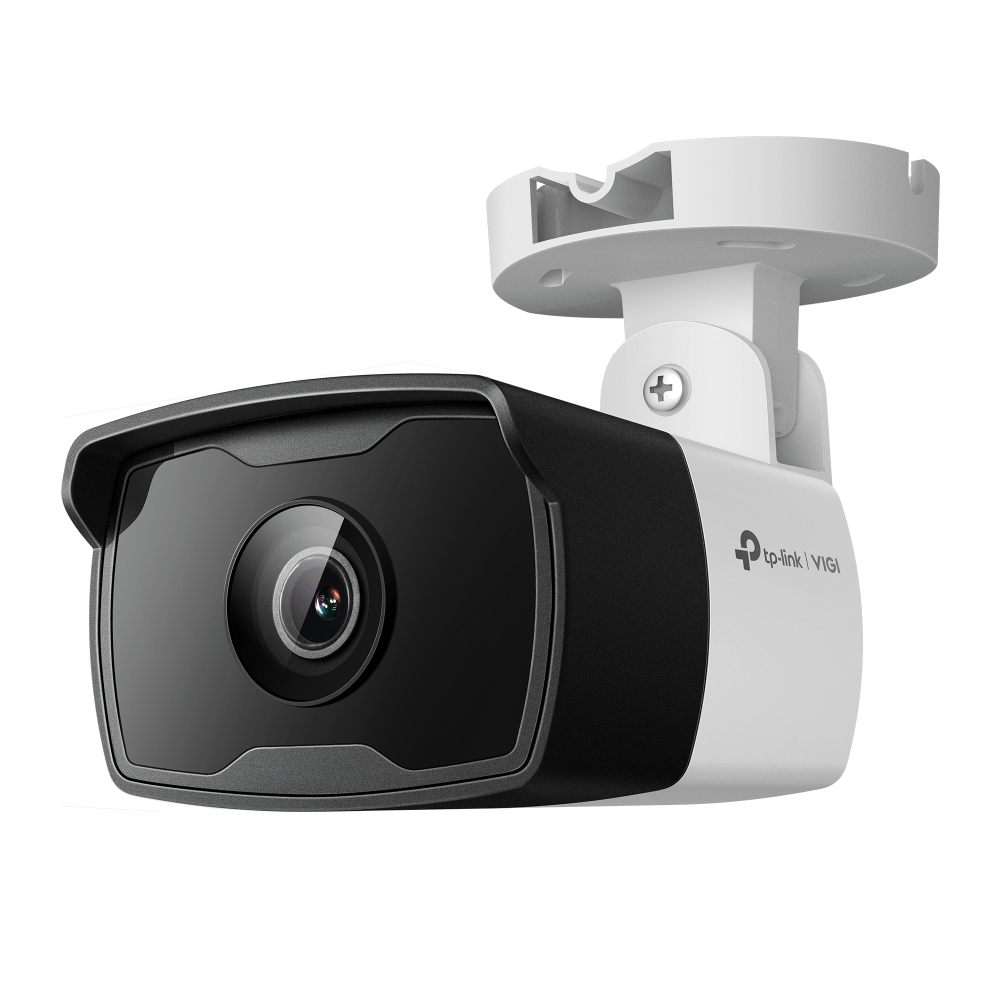

Vigi C320I 2MP 2.8MM Outdoor Bullet Network Camera

Vigi C320I 2MP 2.8mm Outdoor Bullet Network Camera 2MP Full-High Definition: The VIGI C320I camera comes with 2MP – more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
Smart ...Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager. Camera: Image Sensor: 1/3″ Progressive Scan CMOS
Lens: 2.8 mm
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Digital Noise Reduction: 3D DNR
WDR: DWDR
Weatherproof Rating: IP67
IR Working Distance: 30m
Shutter Speed: 1/3 to 1/10000 s
Aperture: F2.2
Lens Mount: M12
Viewing Angle: Horizontal FOV: 88.2 , Vertical FOV: 48.7 , Diagonal FOV: 106.5
Slow Shutter: Yes
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter
Network: Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR
Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage: NAS (NFS, SMB/ CIFS)
General: Operating Temperature: -30-60 C
Storage Temperature: -40-60 C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents:
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions (H X W X D): 174 × 74 × 71 mm
Material: Plastic
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements: PoE (802.3af/at, class 0)
Net Weight: 0.2 Kg
Gross Weight: 0.35 Kg
Power Consumption: PoE: Class 0
Power Supply: PoE (802.3af/at, class 0)
Protection: IP67
Certifications: CE/BSMI/VCCI/ONVIF
Interfaces: Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm: N/A
Reset Button: N/A
Power: DC Power Port
Video Output: N/A
On-board Storage: N/A
Built-in Microphone: N/A
Built-in Speaker: N/A
Audio: N/A
Alarm and Event Management: Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
Alarm Linkage: Message Push
Linkage Method: N/A
Output Notification: Message Push
Video/Image: Video Compression:
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions:
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 1920×1080, 1280×960, 1280×720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704×576, 640×480, 352×288, 320×240
Max. Resolution: 2MP (1920 × 1080)
Video Streaming: Main Stream, Sub-Stream
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 /270 )
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Video Bit Rate: 64 Kbps to 4 Mbps
Day/Night Switch: Day/Night/Auto/Schedule
Smart Feature-Set: Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
Region of Interest: 1 Region
Audio: Audio Communication: N/A
Audio Input: N/A
Audio Output: N/A
Audio Compression: N/A
Audio Sampling Rate: N/A
Environment Noise Filtering: N/A
Audio Bit Rate: N/A
Illuminator: IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
White LED: N/A
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Lens: Type: Fixed Focal Lens
Focal Length: 2.8 mm
Aperture: F2.2
FOV: Horizontal FOV: 88.2 , Vertical FOV: 48.6 , Diagonal FOV: 106.5
Lens Mount: M12
DORI Distance:
Detect: 45 m (149 ft)
Observe: 19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)
Angle Adjustment (Manual): Range:
Pan: -90 to 90
Tilt: -90 to 90
Video: Max. Resolution: 1920 × 1080
Main Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Main Stream Resolution: 1920×1080, 1280×960, 1280×720
Sub-Stream Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
Bit Rate Control: CBR, VBR
Video Compression:
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image: Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 /270 )
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes What’s in the box
1 x VIGI Network Camera
1 x Quick Start Guide
1 x Waterproof Cable Attachments
1 x Mounting Accessories
