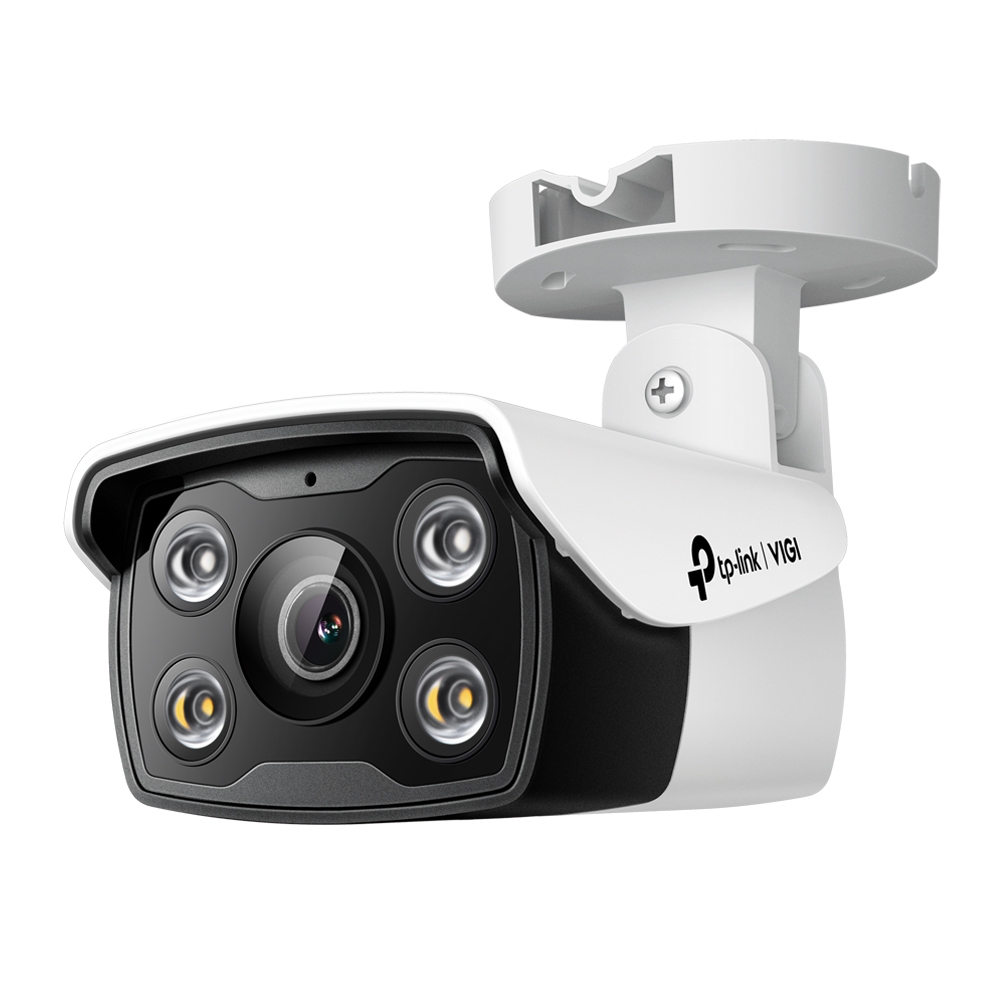

Vigi C330 3MP 2.8mm Outdoor Full-Color Bullet Network Camera

Vigi C330 3MP 2.8mm Outdoor Full-Color Bullet Network Camera

3MP Super-High Definition: The camera comes with 3MP-more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IP67 Waterproof: Reliable IP67 for stable outdoor performance.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.

Camera:

Image Sensor: 1/2.8″ Progressive Scan CMOS
Lens: 2.8 mm/ 4 mm
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Digital Noise Reduction: 3D DNR
WDR: DWDR
Weatherproof Rating: IP67
IR Working Distance: 30m
Shutter Speed: 1/3 to 1/10000 s
Aperture:
2.8 mm: F1.6
4 mm: F1.6
Lens Mount: M12
Viewing Angle:
2.8mm: Horizontal FOV: 107.5 , Vertical FOV: 57.2 , Diagonal FOV: 128.7
4mm: Horizontal FOV: 89.1 , Vertical FOV: 45.1 , Diagonal FOV: 106.9
Slow Shutter: Yes
Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism: IR Cut Filter
Network:

Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage: NAS (NFS, SMB/ CIFS)
General:

Operating Temperature: -30-60 C
Storage Temperature: -40-60 C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents:
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Dimensions (H X W X D): 174 × 78 × 70 mm
Material: Plastic
General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight: 0.26 Kg
Gross Weight: 0.4 Kg
Power Consumption: 12V DC: Max 5.4W, PoE: Class 0
Power Supply: 12V DC 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)
Protection: IP67
Certifications: CE/BSMI/VCCI/ONVIF
Interfaces:

Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm: N/A
Reset Button: N/A
Power: DC Power Port
Built-in Microphone: Yes
Alarm and Event Management:

Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: White Light Flashing, Message Push
Output Notification: Message Push
Video/Image:

Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Frame Rate & Resolutions:
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704×576, 640×480, 352×288, 320×240
Max. Resolution: 3MP (2304 × 1296)
Video Streaming: Main Stream, Sub-Stream
Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 /270 )
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Video Bit Rate: 64 Kbps to 4 Mbps
Day/Night Switch: Day/Night/Auto/Schedule
Smart Feature-Set:

Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method: Trigger Notification: ONVIF, HTTPS
Region of Interest: 1 Region

What’s in the box
1 x VIGI Network Camera
