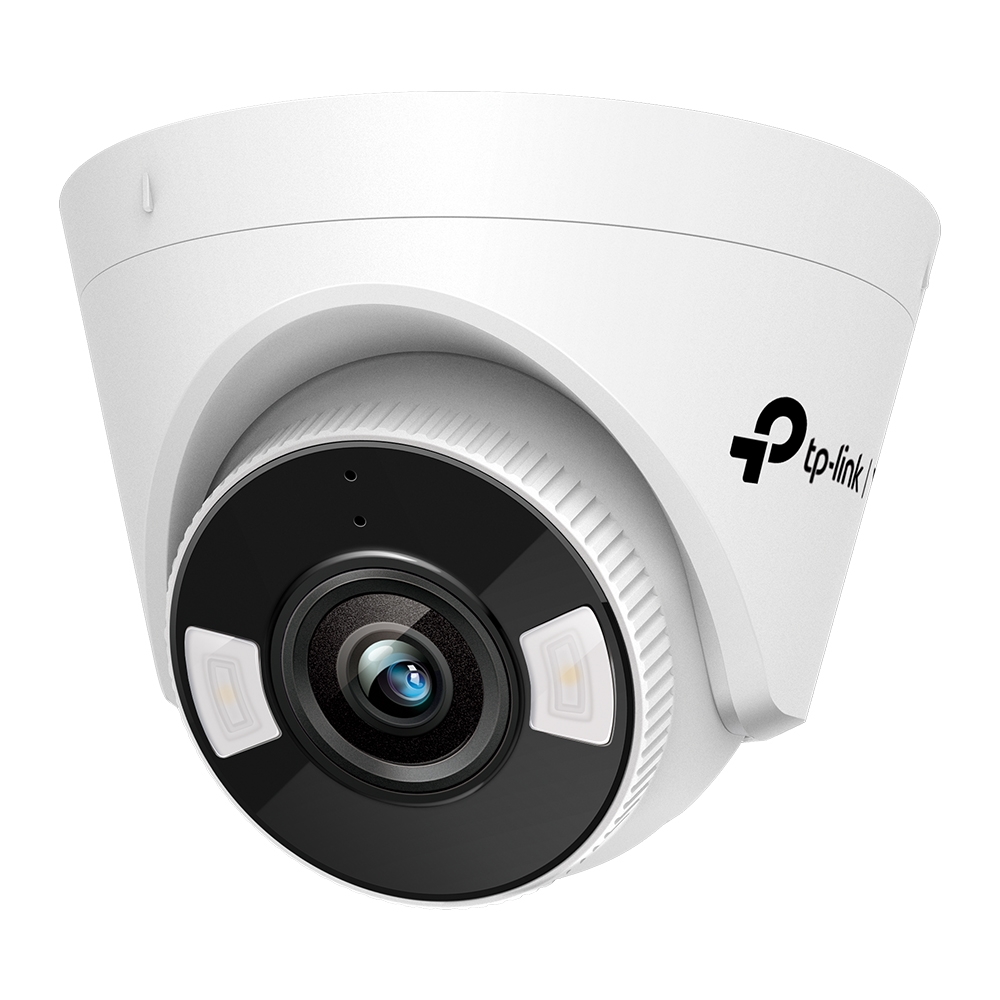

Vigi C450 5MP 4MM Outdoor Full-Color Turret Network Camera

5MP Super-High Definition: The camera comes with 5MP-more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
People & ...Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency .
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256 GB). Camera:
Image Sensor: 1/2.7″ Progressive Scan CMOS
Day/Night Switch: Day/Night/Auto/Schedule-Switch
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter Network:
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: Open Network Video Interface (Profile S)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Web Browser: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
Cloud: Yes
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage: NAS (NFS, SMB/ CIFS) General:
Operating Temperature: -30-60 C
Storage Temperature: -40-60 C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Package Contents: VIGI Network Camera, Quick Start Guide, Mounting Accessories
Material: Plastic
Net Weight: 0.24 Kg
Gross Weight: 0.4 Kg
Power Supply: 12V DC 5%, Max. 9 W, 5.5mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 10.5 W
Power Consumption: Maximum: 9 W, Typical (Day Mode): 1.76 W, Typical (Night Mode with IR LED): 3.5 W, Typical (Night Mode with White LED): 3.8 W
Protection: N/A
Product Dimensions (L x W x H): 123×84 mm
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC Interfaces:
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A Alarm And Event Management:
Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push Deep Learning Function:
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection: Supports Simultaneous Detection and Capture of Human Body and Vehicle LENS:
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: 4 mm: F1.6
FOV: 4mm: Horizontal FOV: 90 , Vertical FOV: 48 , Diagonal FOV: 107
Lens Mount: M12xP 0.5
DORI Distance: 4 mm: Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft) ANGLE ADJUSTMENT (MANUAL):
Range: Pan: 0 to 360 , Tilt: 0 to 85 Audio :
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw) Illuminator :
IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
White LED: Quantity: 2, Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off Video:
Max. Resolution: 2880 X 1620
Main Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2880×1620,2688×1520, 2304×1296, 2048×1280, 1920×1080,1280×720
Sub-Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704×576,640×480, 352×288, 320×240
Bit Rate Control: CBR, VBR
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 What’s in the box
1 x VIGI Network Camera
1 x Quick Start Guide
1 x Mounting Accessories
