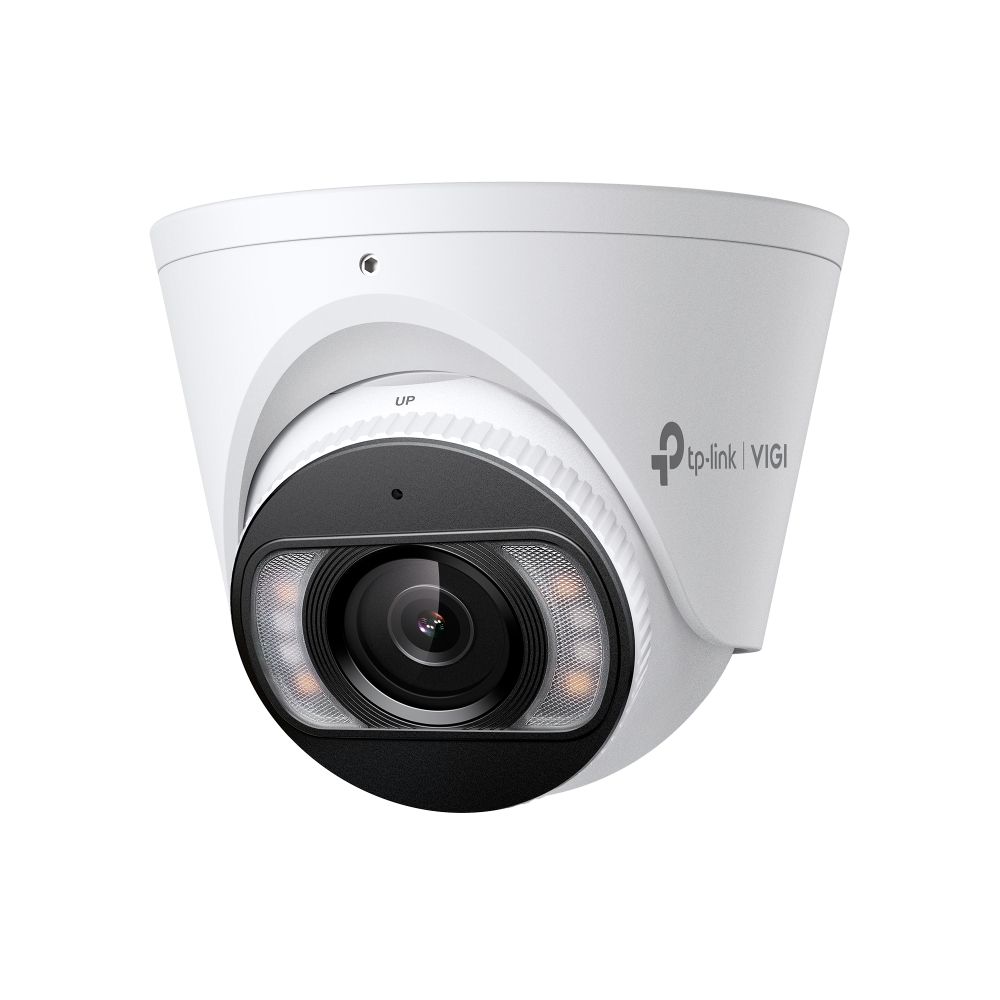

Vigi C485 8MP Full-Color Wi-Fi Turret Network Camera

4K (8MP) Ultra HD and 24h Full-Color
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
IP67 Waterproof
H.265+ Compression Technology
12V DC/PoE Specifications: Camera:
– Image Sensor: 1/2.7″ Progressive Scan CMOS
– Shutter Speed: 1/3 to 1/10000 s
– Slow Shutter: Yes
– Minimum Illumination: 0.005 Lux (0 Lux with IR/White light)
– Day/Night Mechanism: IR Cut Filter
– Day/Night Switch: Unified/Scheduled/Auto Lens:
– Type: ...Fixed Focal Lens
– Focal Length: 2.8/4 mm
– Aperture: F1.6
– Lens Mount: M12xP 0.5 DORI Distance:
– 2.8 mm:
– Detect: 85 m (278 ft)
– Observe: 35 m (116 ft)
– Recognize: 17 m (56 ft)
– Identify: 8 m (28 ft)
– 4 mm:
– Detect: 107 m (350 ft)
– Observe: 44 m (146 ft)
– Recognize: 21 m (70 ft)
– Identify: 11 m (35 ft) Angle Adjustment (Manual):
– Range: Pan: 0 to 360 , Tilt: 0 to 85 , Rotation: 0 to 360 Illuminator:
– IR LED: Quantity: 4, Range: 30m, Wavelength: 850nm
– White LED: Quantity: 4, Range: 30m
– Control: Auto/Scheduled/Always on/Always off Video:
– Max. Resolution: 3840 X 2160
– Main Stream Frame Rate:
– 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
– 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
– Resolution: 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
– Sub-Stream Frame Rate:
– 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
– 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
– Resolution: 704×576,640×480, 352×288, 320×240
– Bit Rate Control: CBR, VBR
– Video Compression: Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 Image:
– Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
– Enhancement: BLC, 3D DNR, HLC, SmartIR
– Wide Dynamic Range: 120 dB
– SNR: 52 dB
– Privacy Mask: Up to 4 Masks
– ROI: 1 Region
– OSD Setting: Yes Audio:
– Communication: Two-Way Audio
– Input/Output: Yes
– Compression: Yes
– Sampling Rate: 8KHz
– Noise Filtering: Yes
– Bit Rate: 64 Kbps(G.711 alaw) Network:
– Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
– ONVIF: Yes
– API: Open Network Video Interface (Profile S)
– Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
– Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
– Web Browser Support: Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
– Cloud: Yes
– Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Alarm and Event Management:
– Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Smart Frame, People Detection, Vehicle Detection
– Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection
– Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
– Output Notification: Message Push Interfaces:
– Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
– Reset Button: Yes
– Power: DC Power Port
– On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
– Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
– Built-in Speaker: Yes General:
– Operating Temperature: -30-60 C
– Storage Temperature: -40-60 C
– Operating Humidity: 95% or Less (Non-Condensing)
– Storage Humidity: 95% or Less (Non-Condensing)
– Material: Metal
– Net Weight: 0.48 Kg
– Power Supply: 12V DC 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12.5 W
– Protection: IP67
– Product Dimensions: 111 × 111 × 83.7 mm
– Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IC What’s in the box
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
