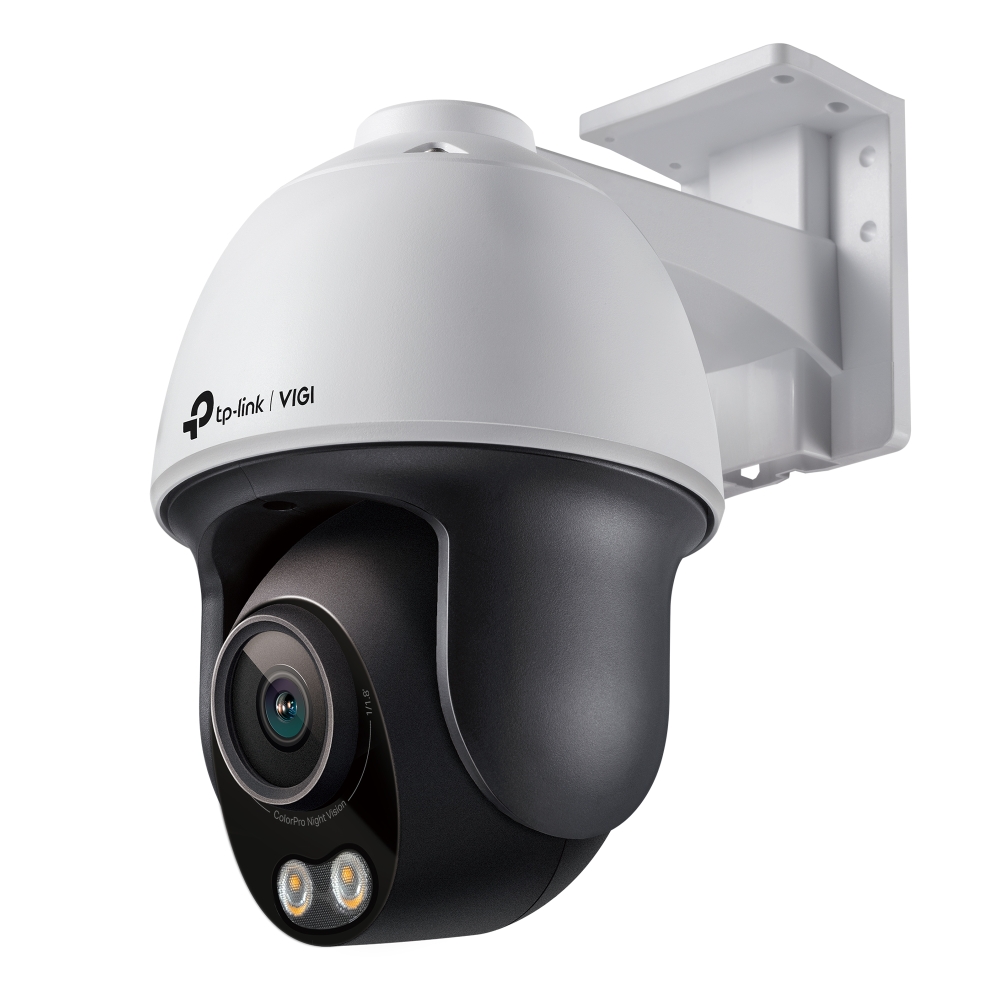

Vigi C540S(4mm)

Ultra-Low Light Color Night Vision: Capture 24-hour 4MP high-quality and colorful video even in ultra low-light conditions without any supplemental lights.
360 Monitoring: Cover every corner and eliminate blind spots.
Face Recognitionx: Efficiently enhances access management and attendance control while better protecting privacy.x
People & Vehicle Analyticsx: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.x
Human & Vehicle Classification: Distinguishes humans and vehicles from other ...objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
True WDR Technology : Enable crystal-clear images in high contrast scenes.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance. Image Sensor: 1/1.79″ Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Minimum Illumination: 0.0005 Lux; 0 Lux with White Light
Day/Night Mechanism: N/A
Day/Night Switch: Unified/Scheduled/Auto
LENS:
Type: Fixed Focal Lens
Focal Length: 4 mm
Aperture: F1.0 5%
FOV: 4mm: Horizontal FOV: 104 , Vertical FOV: 55 , Diagonal FOV: 127
Lens Mount: M16xP 0.5
DORI Distance: 4 mm: Detect: 63 m (207 ft) Observe: 26 m (86 ft) Recognize: 13m (41 ft) Identify: 6 m (21 ft)
Pan/tilt Range: Pan: 0 to 348 , Tilt: 0 to 105
Pan/tilt Speed: Configurable from 8 to 44 /s; Preset Speed: 44 /s Tilt Speed: Configurable from 8 to 44 /s, Preset Speed: 44 /s
Manual Control Speed: Configurable from 8 to 35 /s
Presets: 300
Patrol Scan: 8 patrols, up to 8 presets for each patrol
Power-off Memory: Yes; Auto restore to previous PT and lens status after power failure
Park Action: Yes; Preset; Patrol Scan
Range: Pan: 0 to 348 Tilt: 0 to 105
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Max. Resolution: 2688 x 1520
Main Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream: Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704×576, 640×480, 352×288, 320×240
Bit Rate Control: CBR, VBR
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate: Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image Enhancement: BLC/3D DNR/HLC
Wide Dynamic Range: 120dB Note: When Face Recognition s is enabled, only DWDR is supported.
SNR: 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
NETWORK:
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, Web UI
Web Browser: Google Chrome 57 and above Firefox 52 and above Safari 11 and above Microsoft Edge 91 and above
Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT:
Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push
DEEP LEARNING FUNCTION:
People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture: Support
Face Comparison: Support
INTERFACES:
Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Built-in Microphone: Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker: Yes
Audio: N/A
GENERAL:
Operating Temperature: -30-60 C
Storage Temperature: -40-60 C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Material: Plastic
Protection: IP66
Product Dimensions (L x W x H): 120 × 172 × 203 mm
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC What’s in the box
1 x VIGI Network Camera
