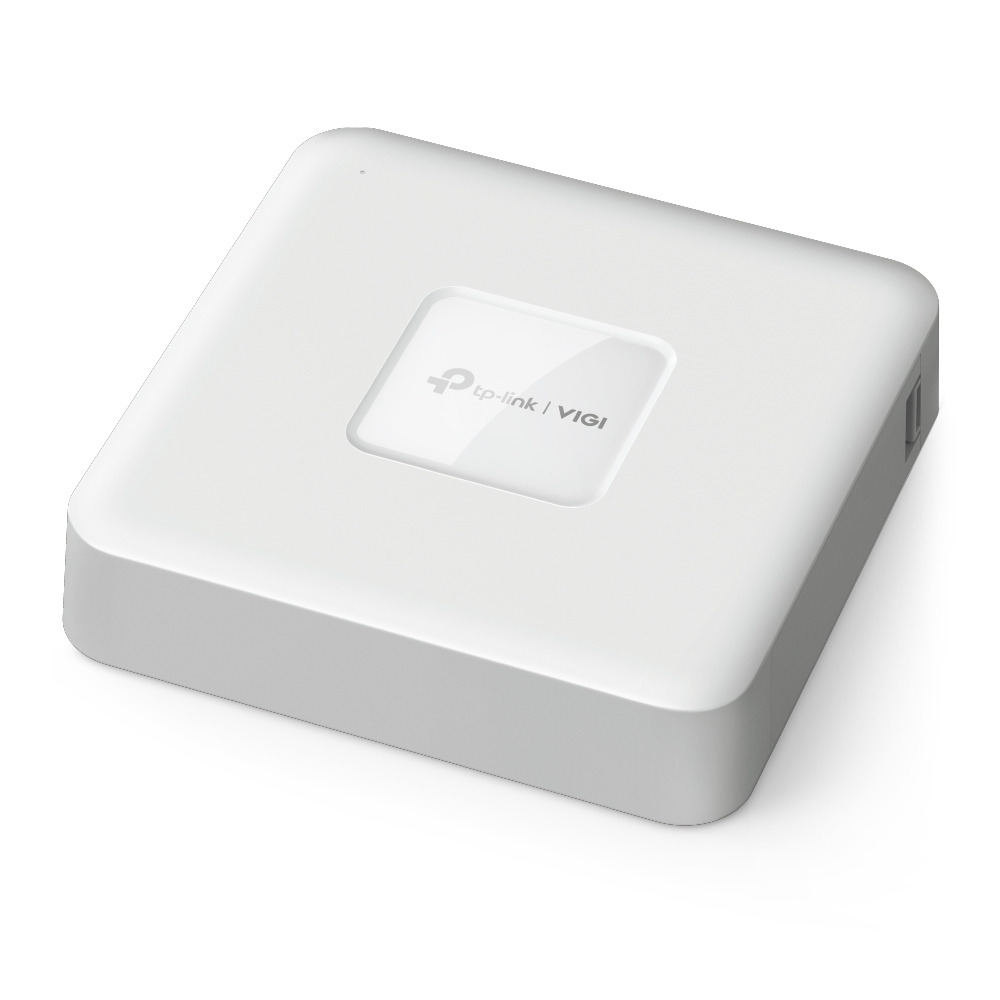

Vigi NVR1104H-4P 4 Channel PoE Network Video Recorder

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle .
Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
Simple HDD Installation : Install and remove the HDD manually with easy side access.
4-Channel Simultaneous Playback : Replay the feed from up to 4 cameras at the same time, ...increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
ONVIF Ensures Compatibilityx: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience.
Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk. Specifications: NETWORK:
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith: 80 Mbps
Outgoing Bandwidth: 60 Mbps
GENERAL:
Operating Temperature: -10-55 C
Dimensions( W X D X H ): 200.3 × 200.3 × 43 mm
PoE: Standard: 802.3af/at, PoE Ports: Ports 1-4, PoE Budget: 53 W
External Power Supply: 53.5V DC/1.31A
Power Consumption: 4.82 W (without disk)
INTERFACES:
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2× USB 2.0
HARD DISK:
SATA: 1 SATA Interface
Capacity: Up to 10 TB
VIDEO/IMAGE:
Video Input: 4-Channel IP Video Input, up to 8MP Resolution
Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
VGA Output Resolution: 1 Channel; Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
DECODING:
Decoding Format: H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 4 Channel
Capability: 2-ch @ 8MP, 4-ch @ 4MP What’s in the box
1 x VIGI Network Video Recorder
