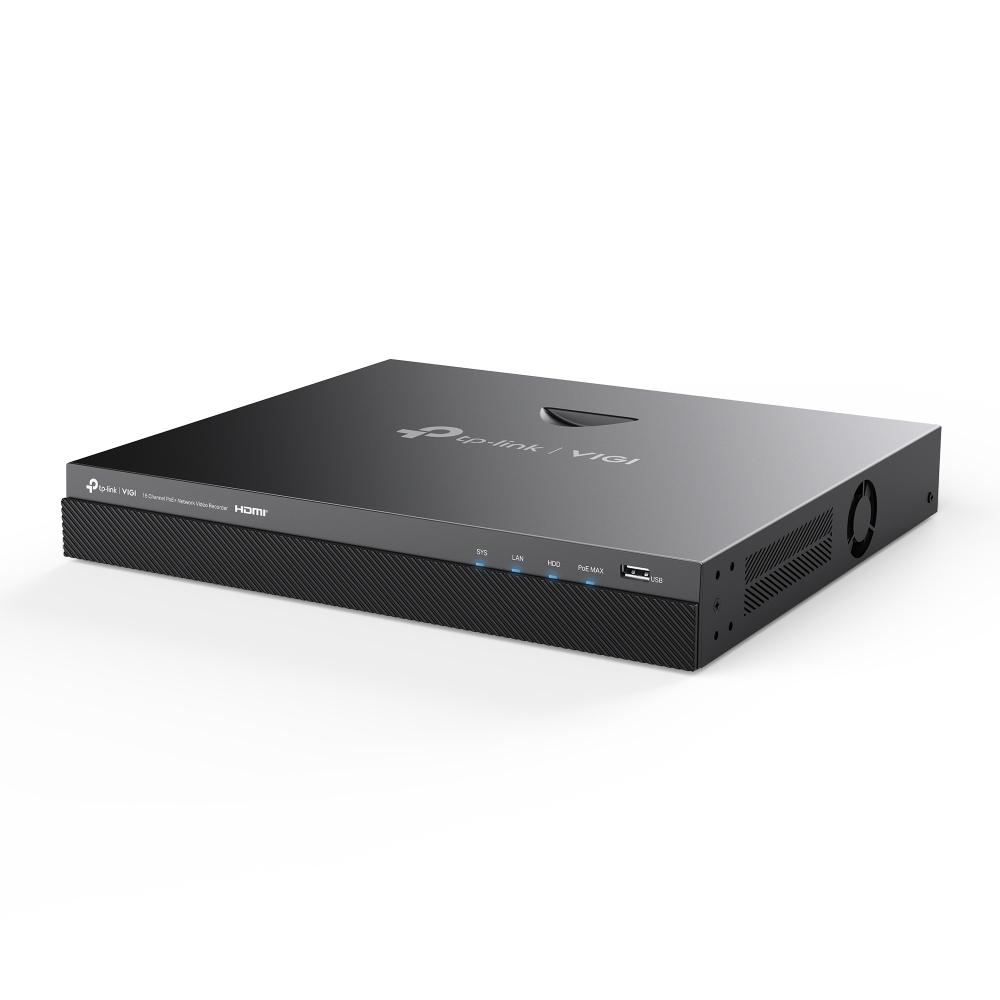

Vigi NVR2016H-16P

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.
90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.
16-Channel Simultaneous Playbackx: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the ...video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility : Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Auto Initialize for Quick Configuration: Just click “Auto Initialize” to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage daysxxx) from connected cameras to secure your data for quick, convenient access.
Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience. Specifications: IP Video Input: 16-Channel
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 60 Mbps
HDMI Output Resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode: HDMI/VGA Simultaneous Output
Multi-View Display: 1/4/6/8/9/16
DECODING:
Audio Compression: G.711A/G.711U/G.726
Video Compression: H.265+/H.265/ H.264+/H.264
Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback: 16-Channel
Capability: 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP 30fps: 4-ch @ 3MP, 2-ch @ 5MP
RECORD MANAGEMENT:
Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode: Instant Playback Regular Playback Tag Playback Event Playback
Backup Mode: Regular Backup Video Clip Backup
Playback Function: Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK:
Protocol: UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access: Android, iOS
Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF, CGI
EXTERNAL INTERFACE:
Network Interface: 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface: 1, Audio In; 1, Audio Out
Alarm In/Out: N/A
Serial Interface: N/A
Power: 1× DC Jack
Reset Button: 1
Speaker: N/A
eSATA: 1
HDMI: 1
VGA: 1
HARD DISK:
SATA: 2 SATA Interfaces
Capacity: Up to 10 TB Capacity for Each HDD
POE:
Standard: 802.3at/af Compliant
Interface: 1- 8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget: 90 W Available for All PoE+ Ports, 30 W Max per Port
General Alarm: Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible Alarm
Working Temperature: NVR: -10-55 C; Power Adapter: 0-40 C
Working Humidity: 10%~90% RH Non-Condensing
Dimensions( W X D X H ): 330 × 285 × 45 mm
Net Weight: 2.1 Kg
Gross Weight: 4.1 Kg
Power Supply: 53.5V DC/2.43A
Power Consumption: 6.2 W (Without Disk); 40 W (With Disk)
Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI What’s in the box
1 x VIGI Network Video Recorder
