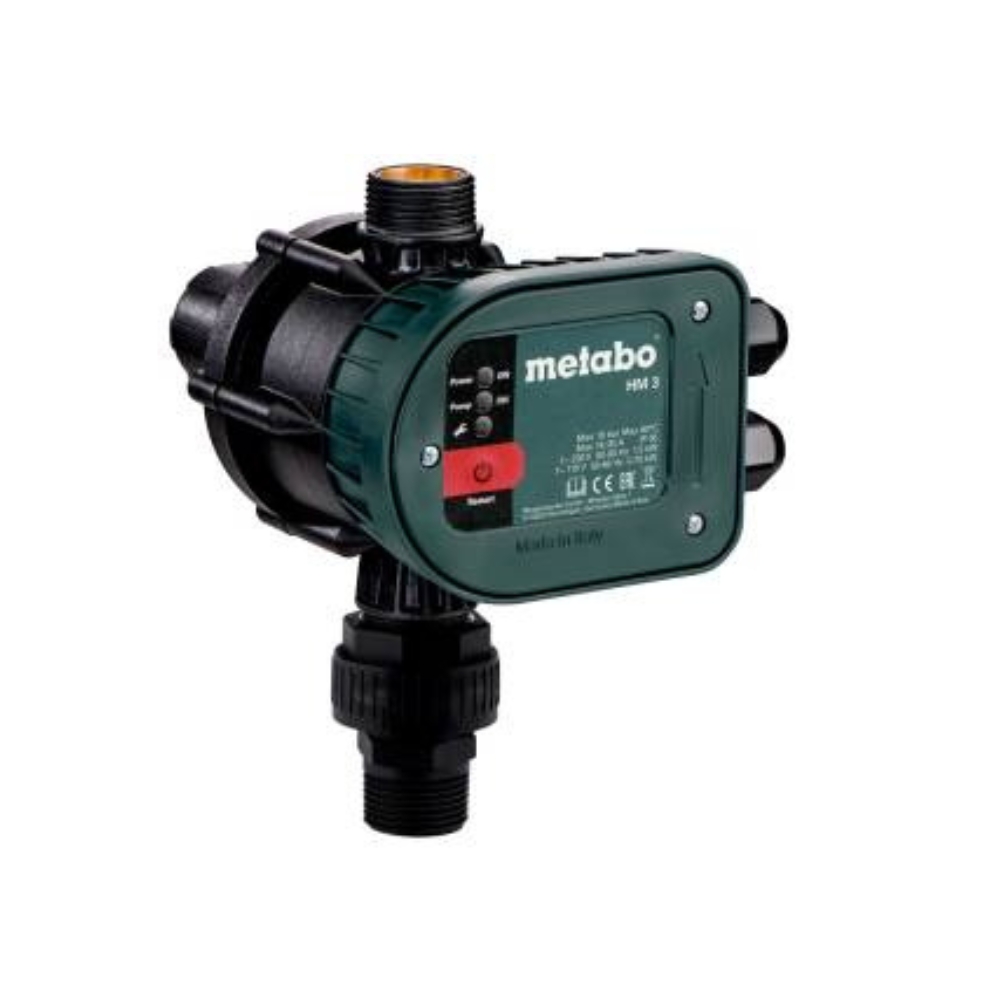

Metabo – Electronic Pressure Switch with Dry Run Protection (628799000)

Automatic control: switch on the pump for water discharge and switch off upon reaching the maximum pressure
Dry-run protection: automatic deactivation of the motor when nothing is left to pump (leaky suction pipe, the water supply dries out)
LED display to check the operating condition
Membrane and spring to eliminate the impact of pressure surges
Safety valve to prevent water leaking if the diaphragm is damaged Quick and easy assembly
Ideal for converting a garden ...pump into an automatic domestic water system
Also suitable for deep well pumps and submersible pressure pumps
Switch-on pressure approx. 1.5 bar Voltage: 115 V/ 230 V
Frequency: 50 / 60 Hz
Protection type: IP 65
Maximum amperage: 16(8) A-1.5 kW
Maximum operating pressure 10 bar
Maximum operating temperature 0 to 60 C Connection:
Discharge port, 1″ male thread
Device connection, 1″ male thread
Brass adapter 1″ female thread x 1″ male thread
Brass adapter 1″ female thread x 1″ male thread What’s in the box
1 x Electronic Pressure Switch with Dry Run Protection (628799000)
